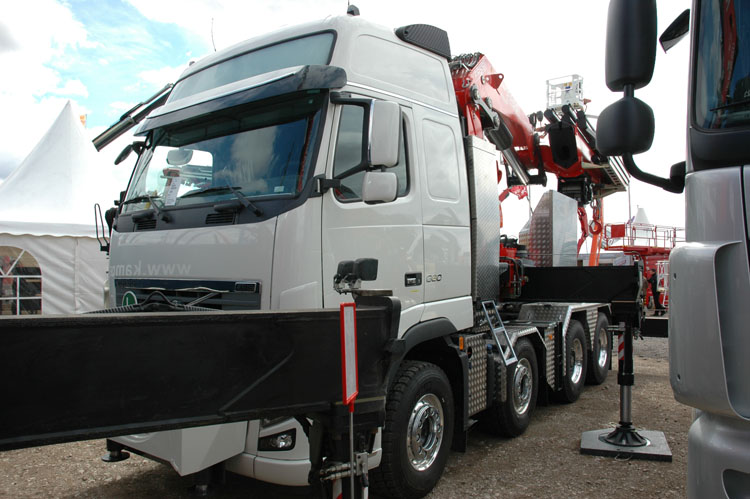

| At the stand of Kogler stood 2 trucks with Fassi 1100 cranes. This is the first one, a Volvo FH16-660 8x4 tractor of Gruschina from Vienna. |
 |

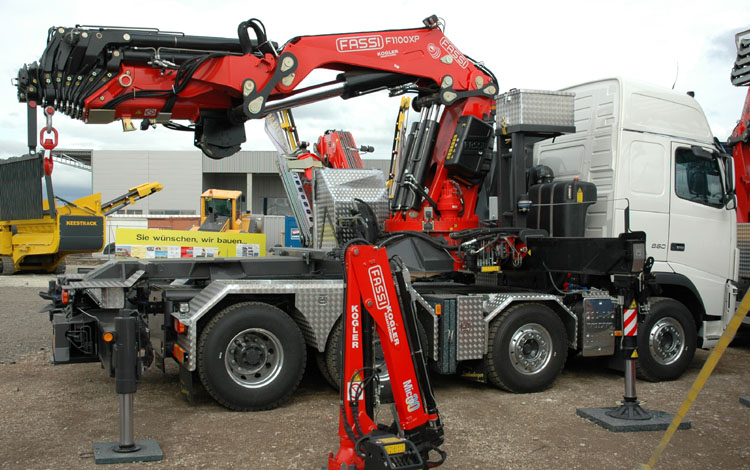

It's an interesting tractor, because it is equiped with a completely demountable Fassi 1100, installed by Stubenberger. It is a 8x extending crane with a length of 19,65 meters. The quick coupler for the jib is availble, the jib itself wasn't there.
|
 |

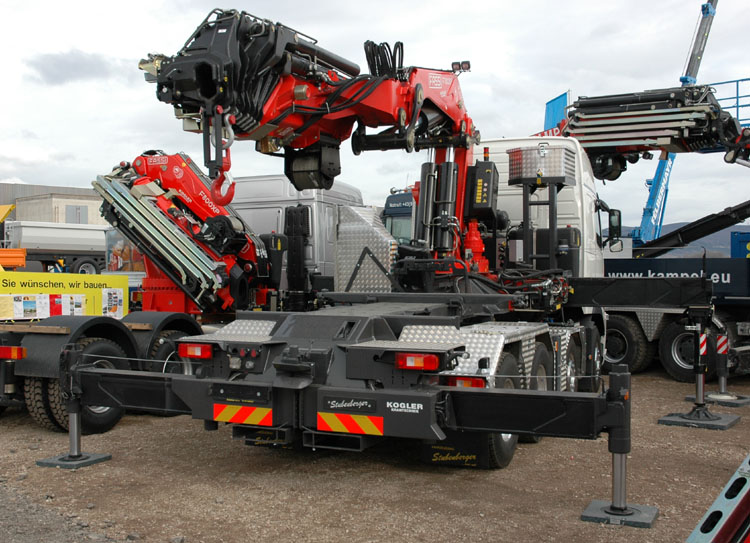

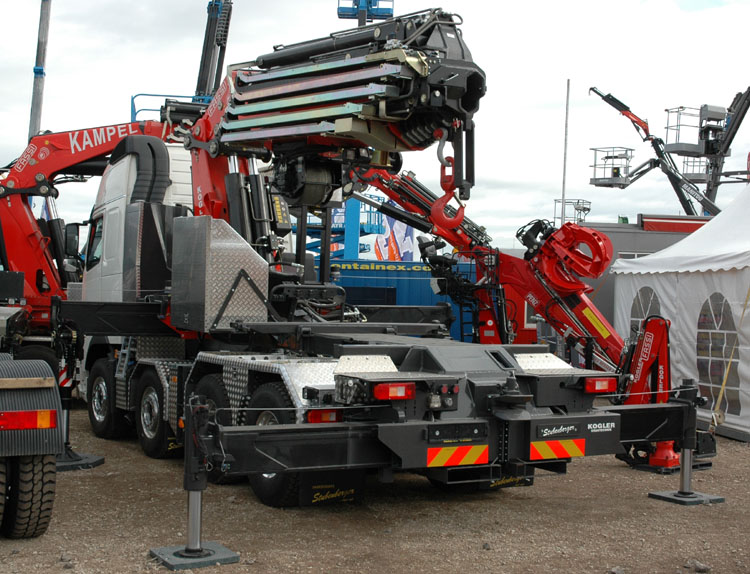

| The tractor has a very short wheelbase, just like the Fassi 1500 of Gruschina. The complete support frame with crane and outriggers can be taken of so that the truck can be used as single tractor. The construction is being moved to the rear with hydraulic cylinders, then it is lifted with the outriggers. |
 |
The demountable frame is fixated onto the support frame of the Volvo with pins. This is necessary because the support frame is also being built to the front. It is important that the forces of the crane are transferred correctly to the front outriggers.
|
 |

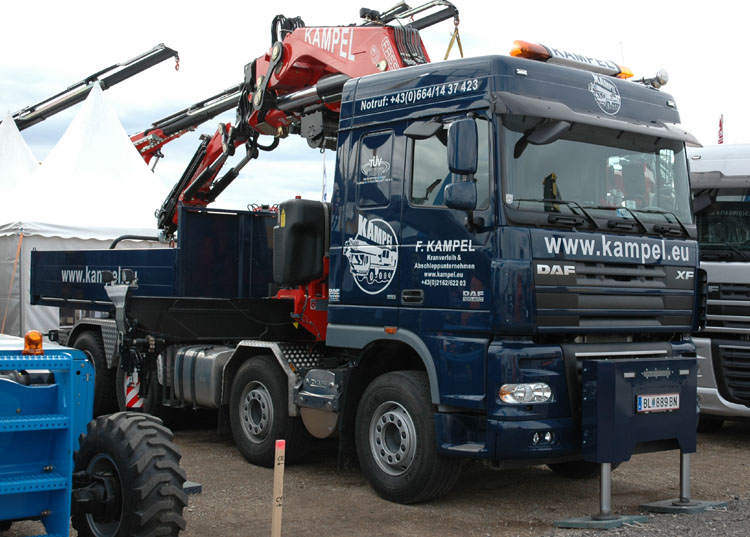

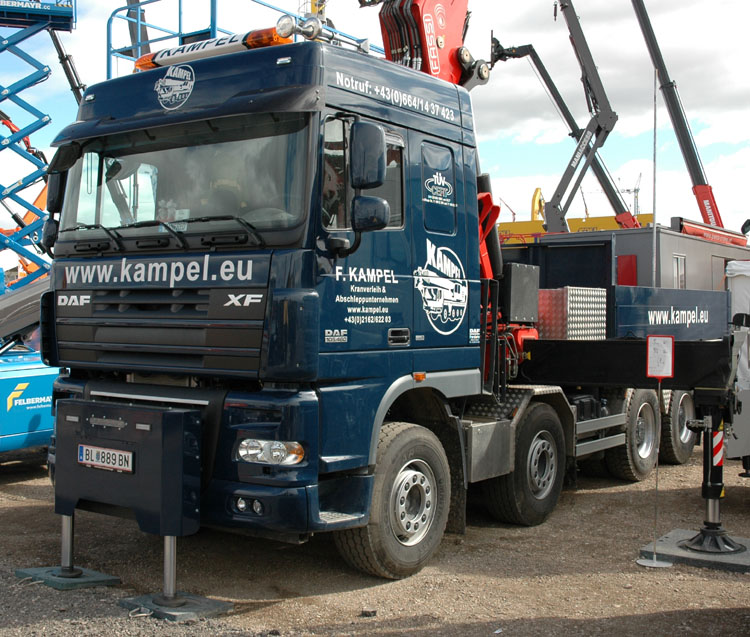

| The second Fassi 1100 at the stand was this one of Kampel, mounted on a DAF XF105.460 8x4 tractor. |
 |

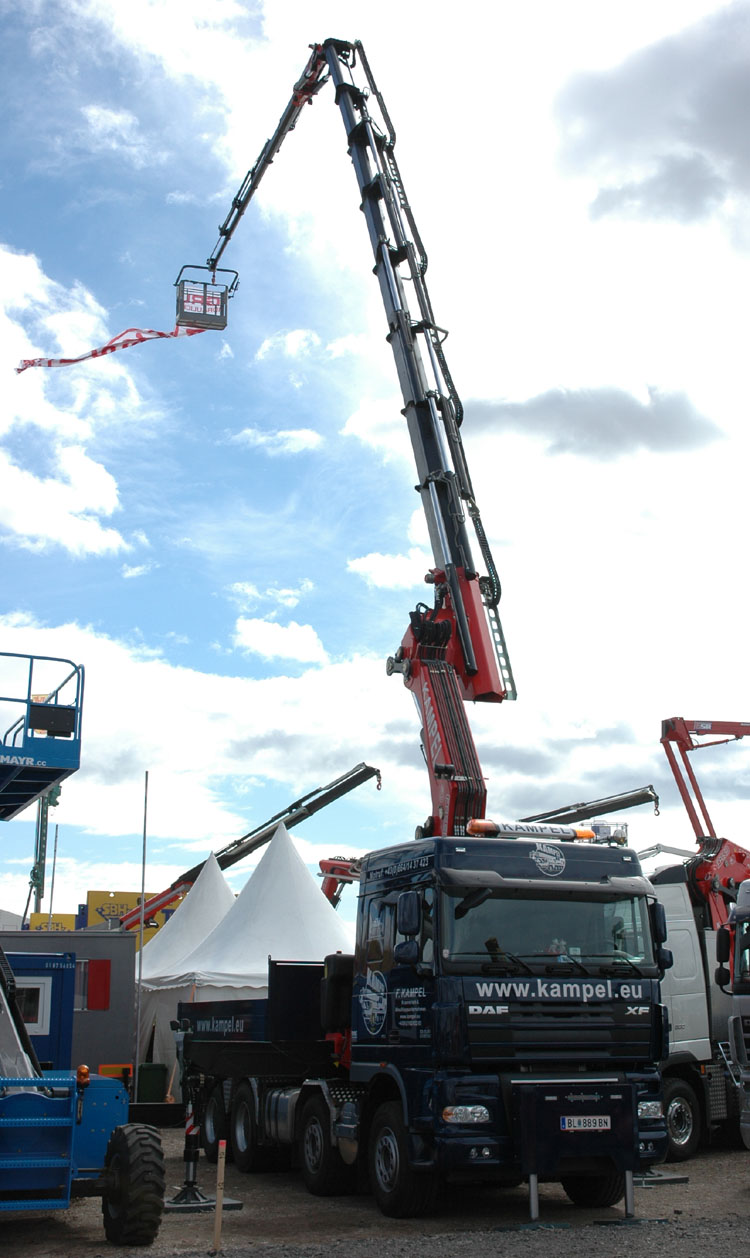

| The 1100 is a 8x extending version with a 6x extending jib that has a workman-baskter mounted here. |
 |

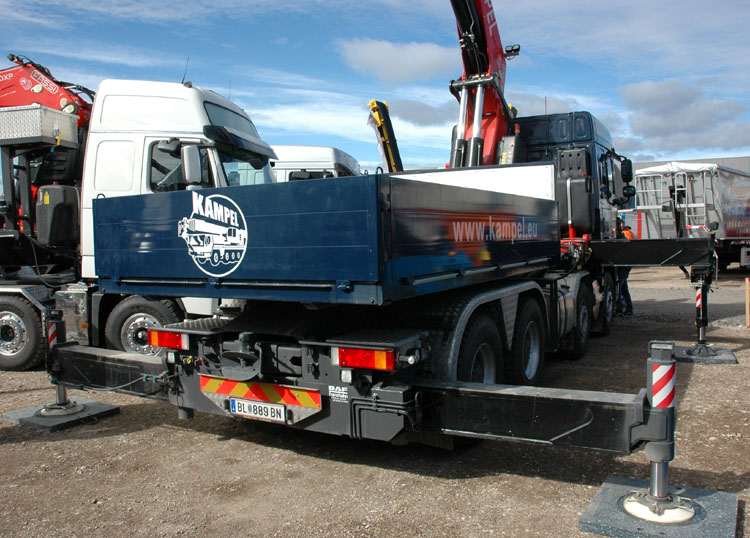

A demountable box lies on the tractor.
|
 |

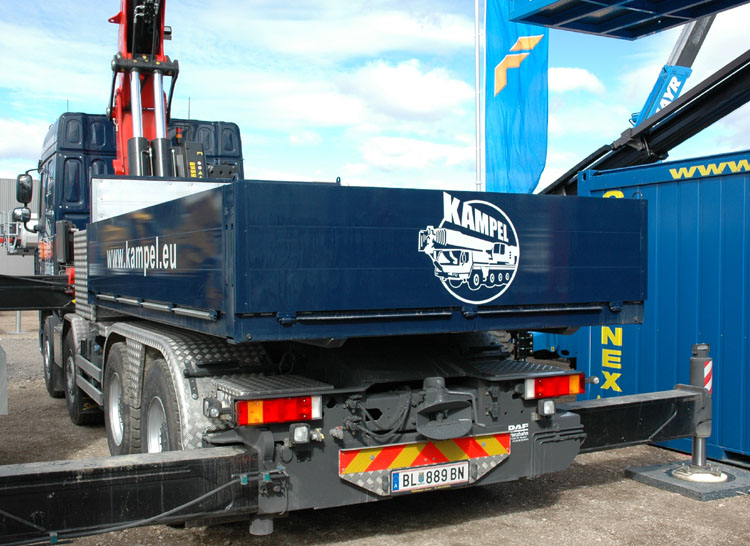

With box, as can be seen here, the truck can also be used with a drawbar trailer.
|
 |
This crane was also mounted by Stubenberger. The chassis is completely reinforced to the front, where it has a set of strong outriggers.
|
| |
