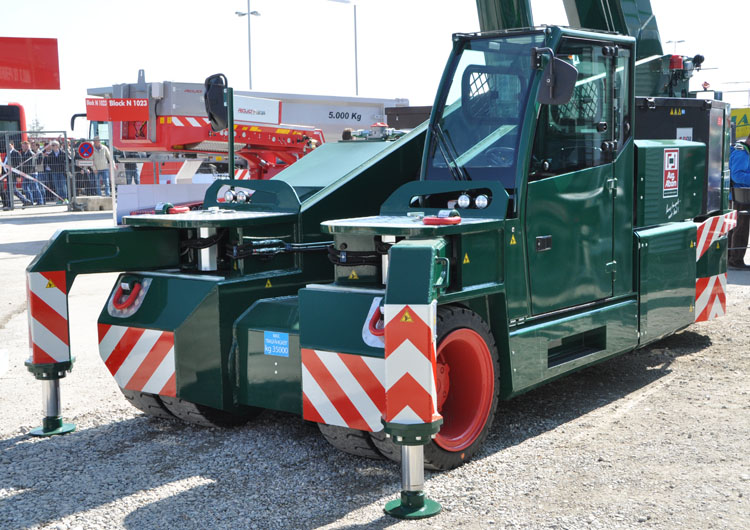

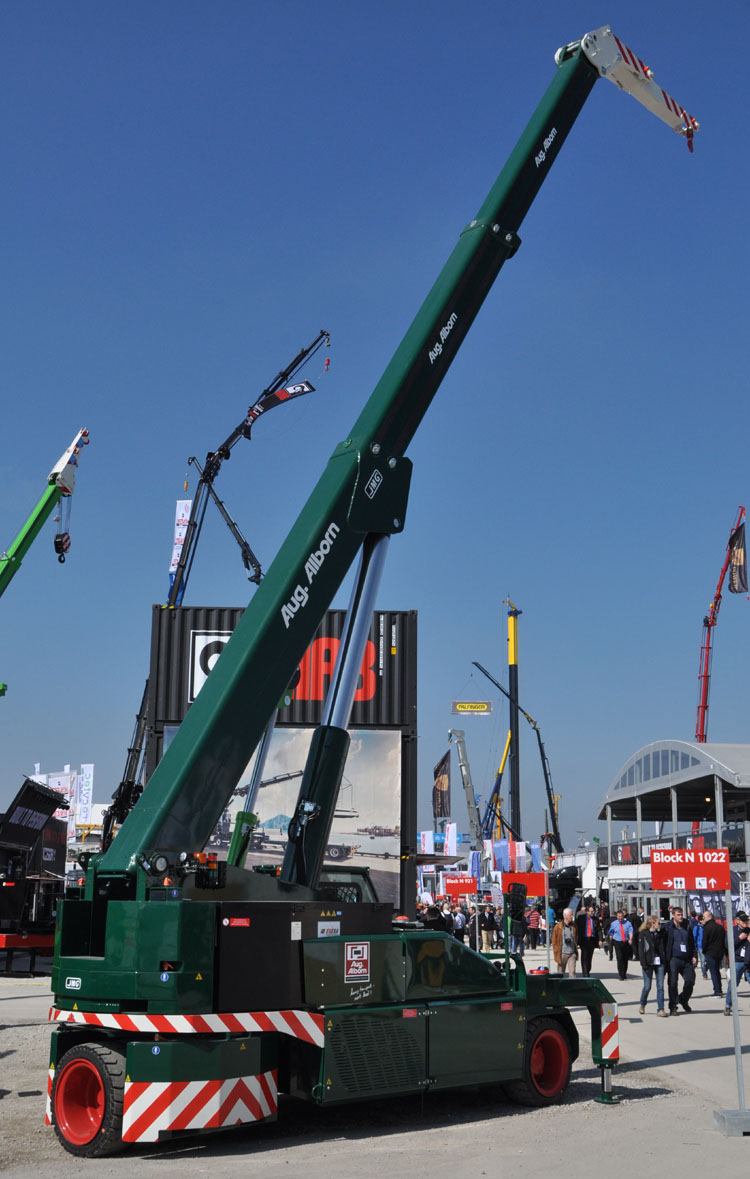

JMG showed this indoor crane, the MC350 that is sold to Aug. Alborn. It can lift up to 35 tons in front of the crane, this is 15/16 tons at 3 meters. It has got 7,3 tons of ballast hanging at the central rear axle. This can be demounted if necessary. The rear axle can rotate 90° in both directions. The own weight is 28,7 ton with the ballast installed. The crane can drive with a load on the hook, but it can also be used with outriggers.
|
|
|
|
|

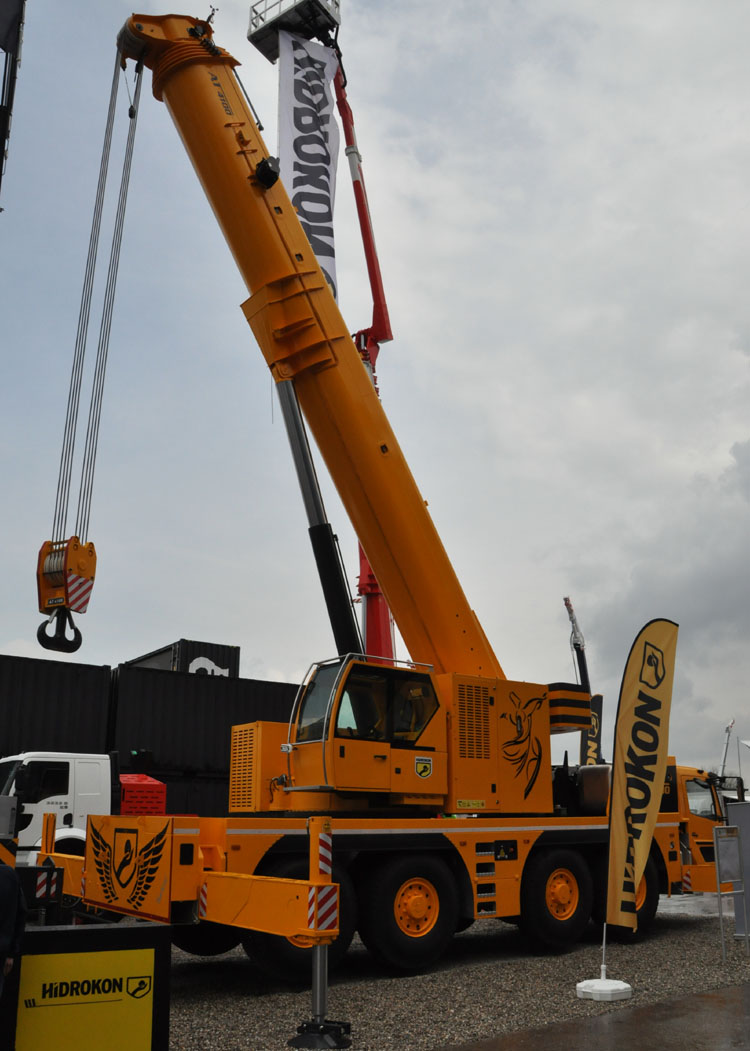

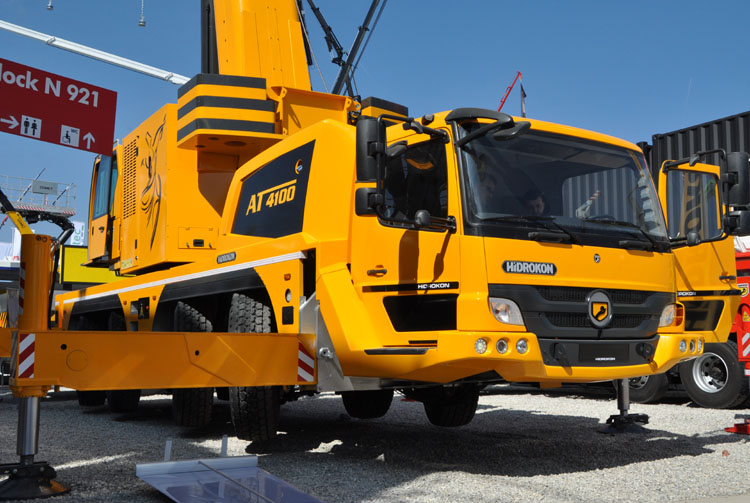

Hidrokon introduced their first telescopic crane this year, the AT4100. This crane has got a boom of 51 meter and can lift up to 100 tons at 3 meters.
|
|
Erkin |
|
|

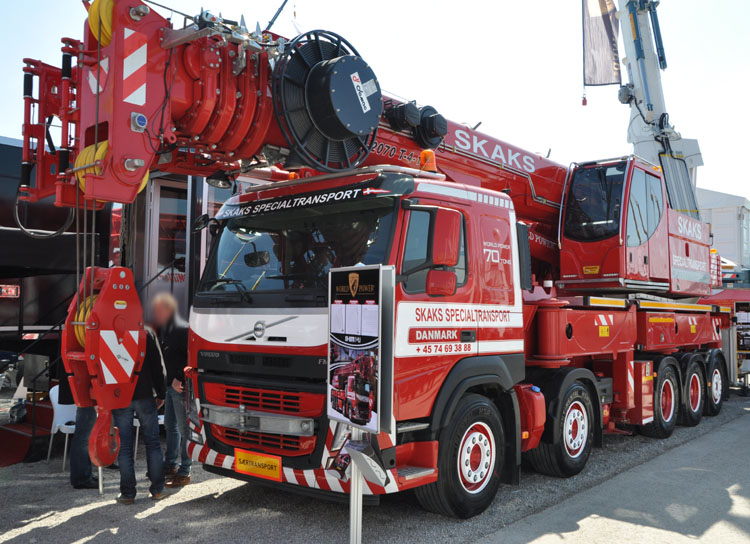

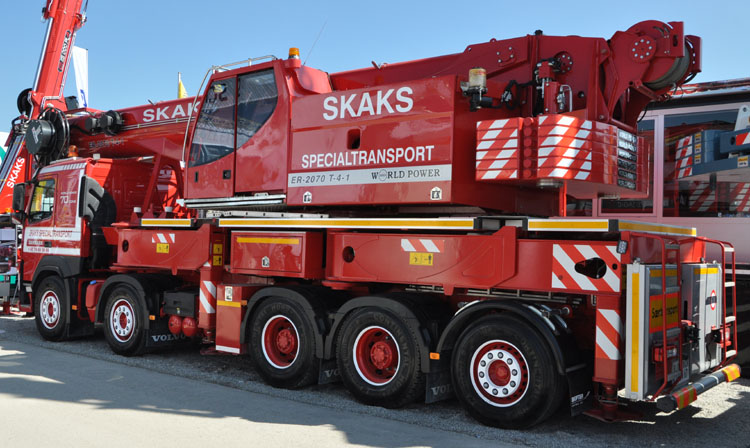

Erkin/Worldpower also builds telescopic cranes. This is the ER-2070 that is installed on a Volvo FMX 10x4 of Skaks. This crane can lift up to 70 tons. With the jib that installed beside the main boom, it can reach up to 58 meters.
|
|
Cometto |
|
|

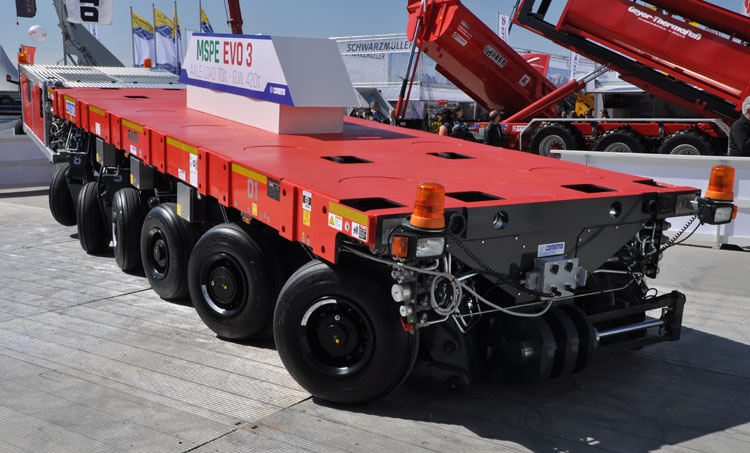

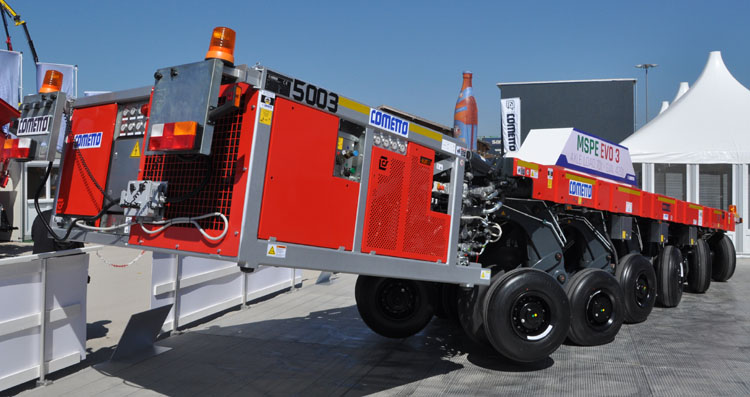

Cometto showed this MSPE EVO3, a self driven platform with axle line loads up to 70 tons. This setup can have a total weight of up to 420 tons.
|
|
Nicolas |
|
|
|

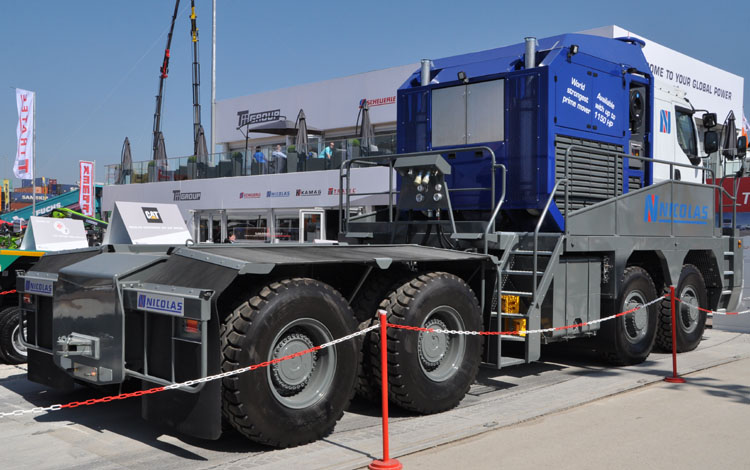

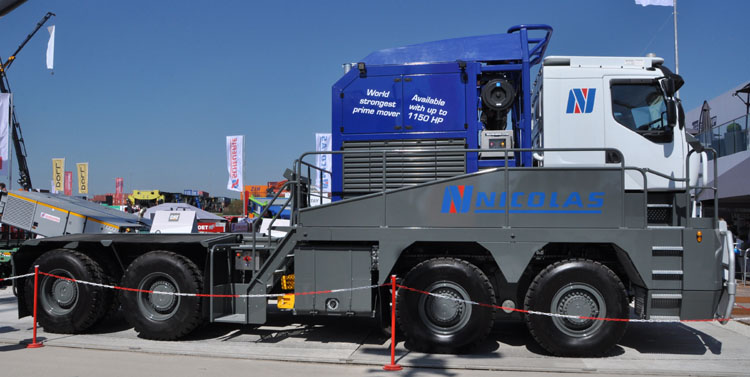

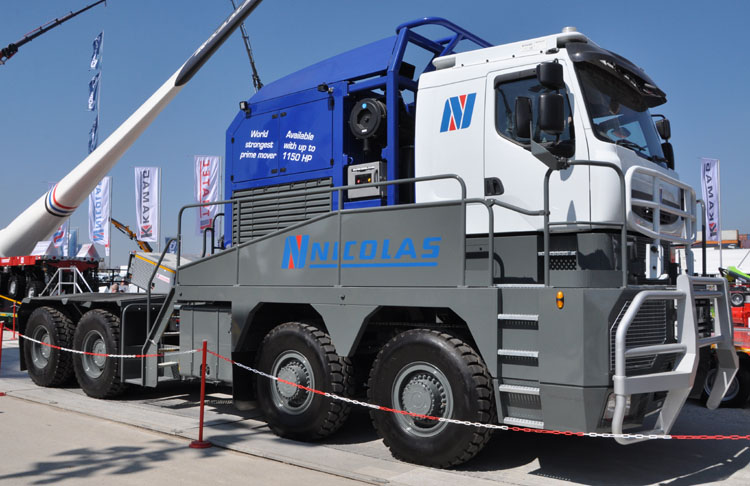

Nicolas demonstrated a heavy duty tractor, the TR 8x8 D75. That is a tractor with an own weight of 36 tons with an allowed chassis weight of 75 tons. The maximum total weight wasn't mentioned, just the pulling force of 730 kN. It is driven by a 950 hp Caterpillar C27 engine.
|
|
Drillmec |
|
|
|

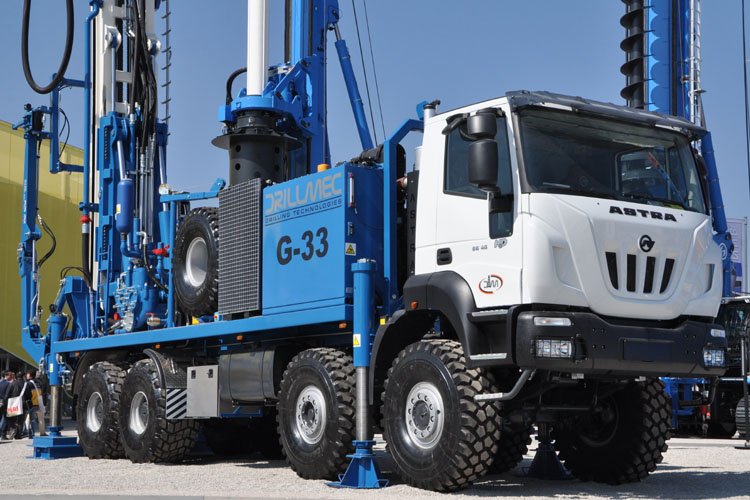

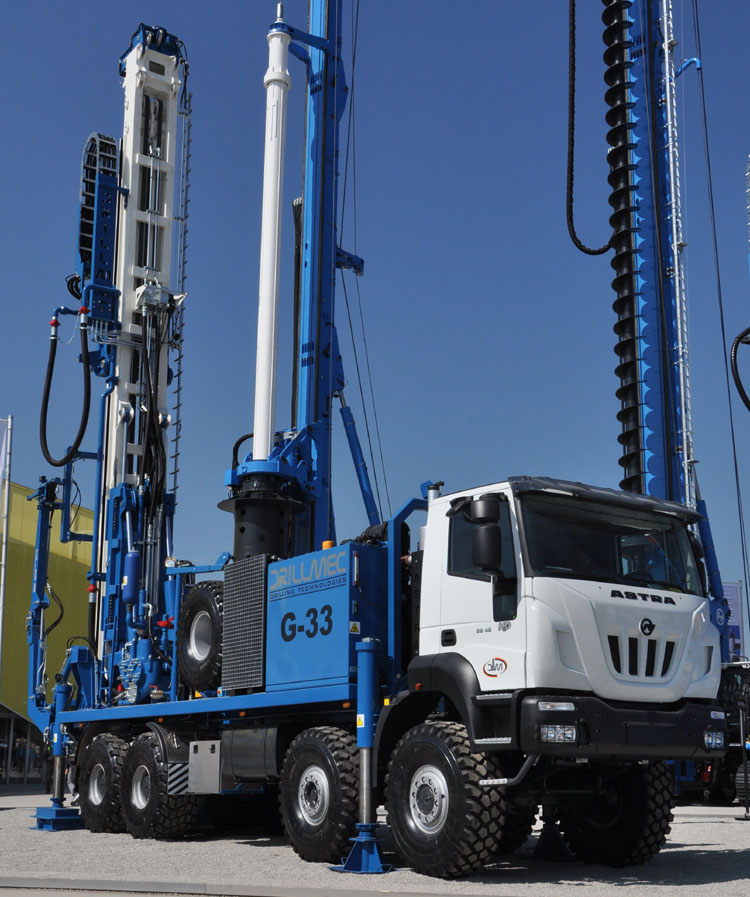

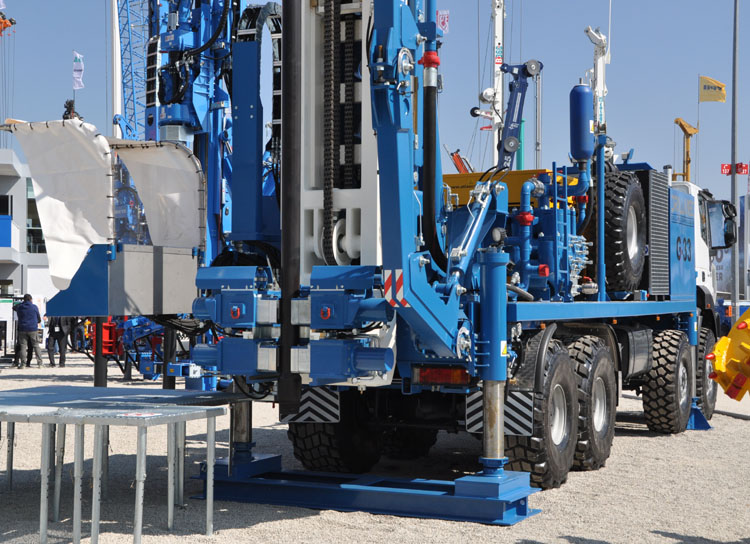

Drillmec displayed this nice drilling rig, the G-33, that is installed on an Asta HD9 86 48 8x6. |
|
Estepe |
|

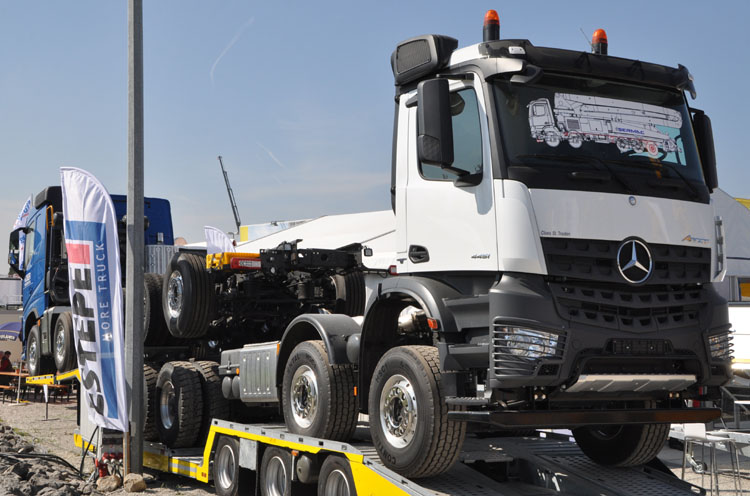

Estepe had a truck trailer of itself on the stand. This trailer was loaded with this Arocs 4451 10x4. This truck has gotten a tag axle at Estepe, the base is an 8x4. This 9 ton axle gives it a total weight of 53 tons, the chassis will be equiped with a Sermach concrete pump.
|
|

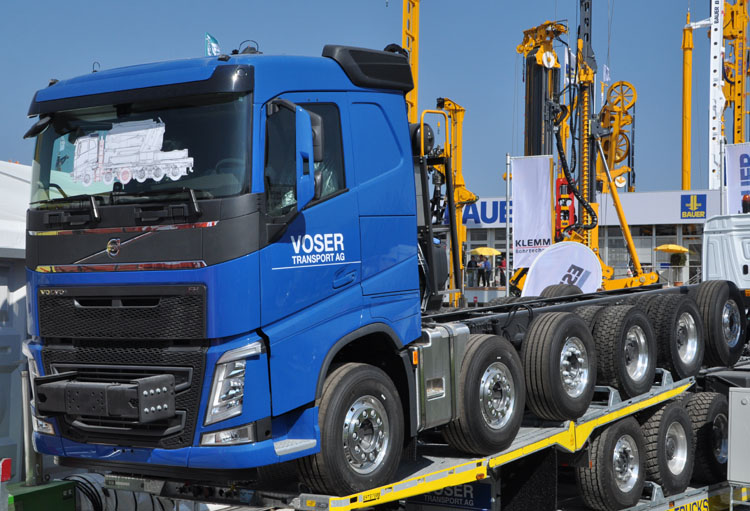

At the back of the trailer stood this Volvo FH in 12x4 version. The base is a Volvo FH 10x4 to which Estepe added the 3rd axle. This is a 10 ton axle. This chassis will be equiped with a heavy crane.
|
|
Föckersperger |
|
|

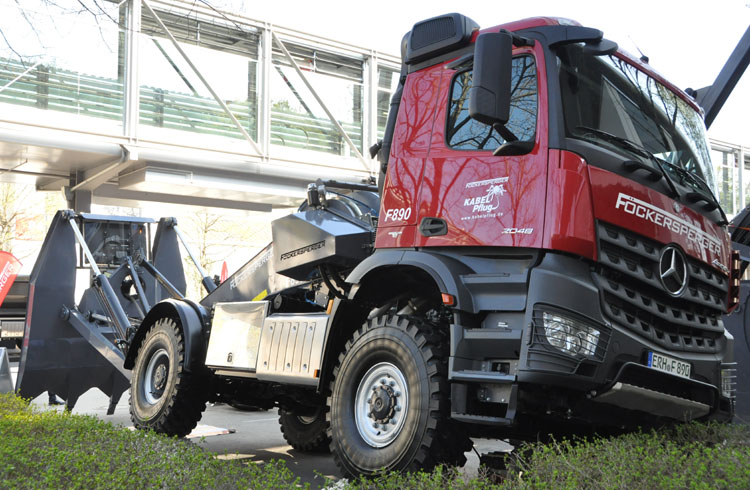

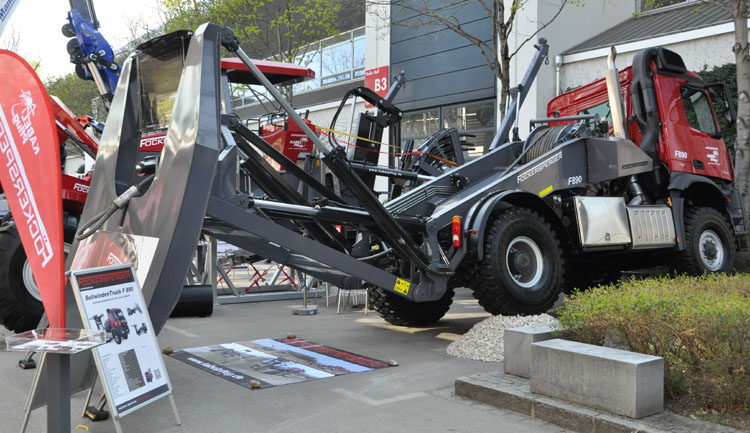

Cable plows are always interesting. The pulling vehicle, in this case a Mercedes Arocs 2048 4x4, is equiped with a heavy plate that sinks into the ground. With the 80 ton winch it can then pull the plow through the soil. The cables are put into the ground with this deep plow.
|
|
Hoeflon |
|
|

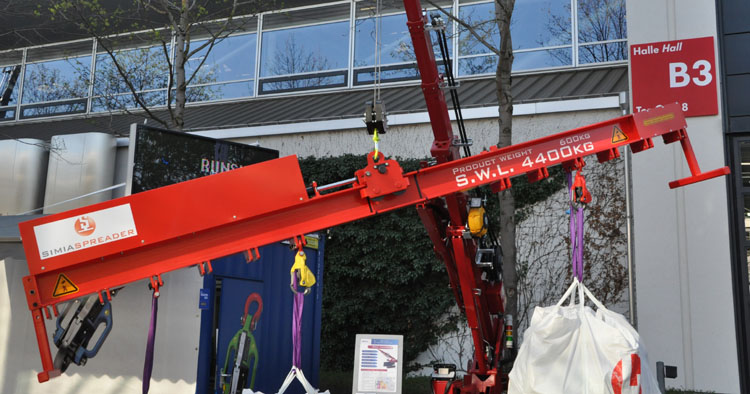

A Hoeflon C6 was parked between the hals. It is lifting a moveable lifting beam. This beam has got a cylinder on the left side with which the lifting point can be moved while lifting. This way the beam can be leveled at any time.
|
|
|
