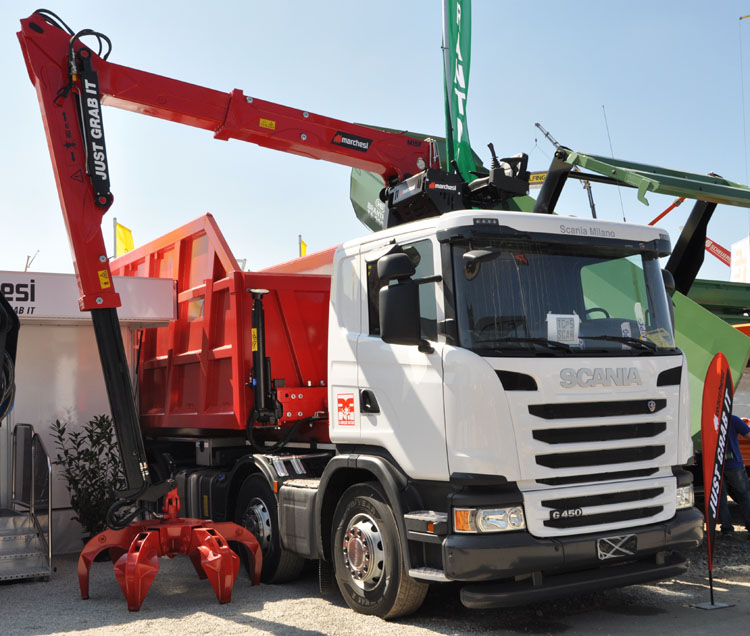

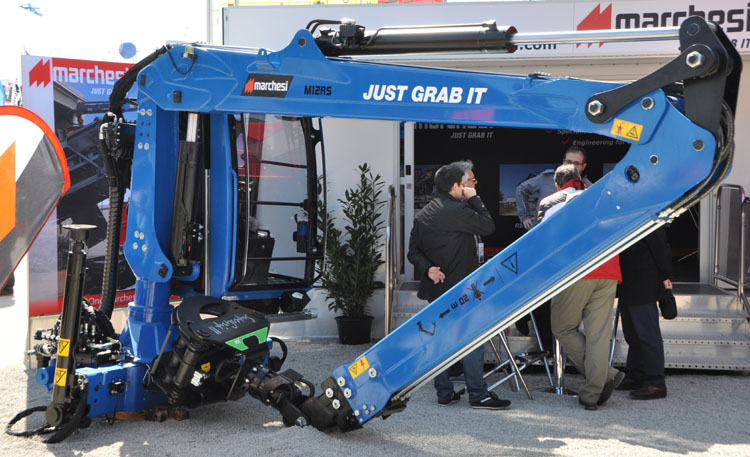

| The company Marchesi builds logging- and scrap cranes. Two models where shown, the blue crane is the M12RS and on the Scania G450 they installed a M15F. |
|
|
|
|
|
|

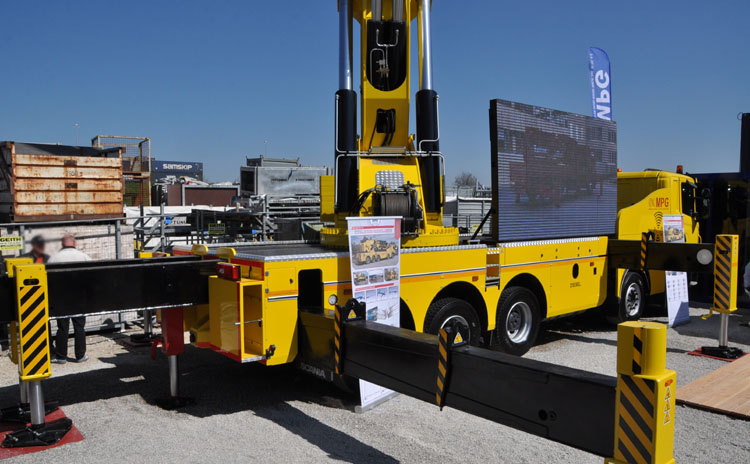

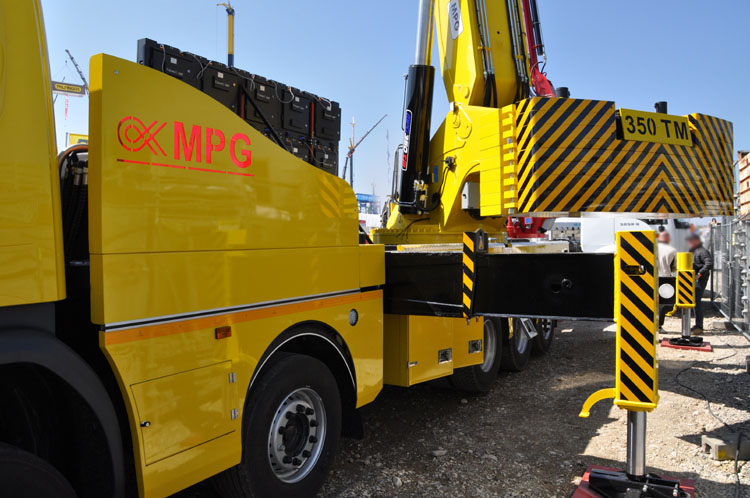

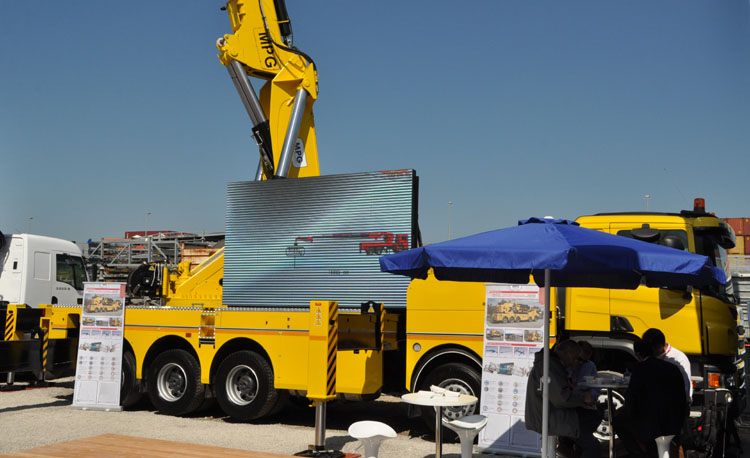

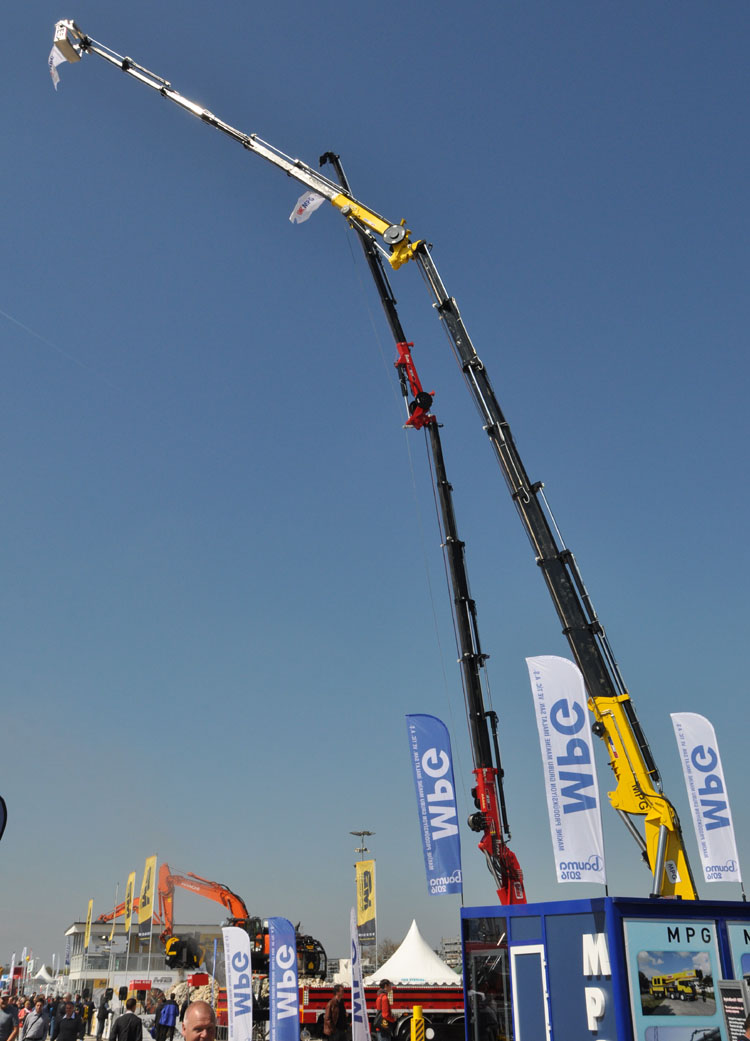

| The turkish company MPG showed this new crane, it's the MPG 350 TPM 7+6 that is mounted onto a Scania P450 10x4. The crane has got 7 telescopic parts that give a reach of 21,35 meters, with 3 manuals that even gets 30,15 meters. The load at 21,35 meters can be 10 tons! With the 6x extending jib the outreach becomes 41,09 meters with 1,3 ton capacity. The jib can also have 3 manual parts, which give a total outreach o 53,24 meters with 430 kg. The subframe has got the 4 regular outriggers and 2 extending from the rear (the red outrigger is from the crane beside it). The crane is equiped with quit a stack of ballast. |
|

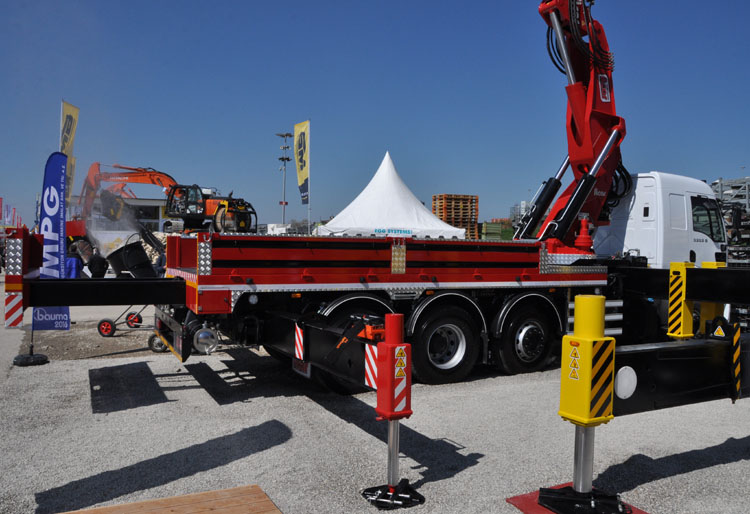

| The brandname Acar also belongs to this stand. An Acar crane was showns on this Ford Cargo 3232S. It's an Acar AC115TM 5+4, meaning a 115tm class crane with 5 extensions and a 4x extending jib. |
|
|
|
|
|

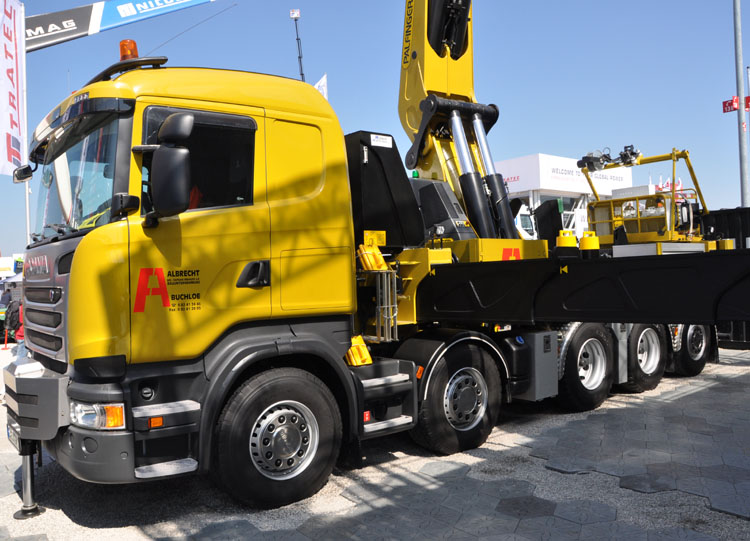

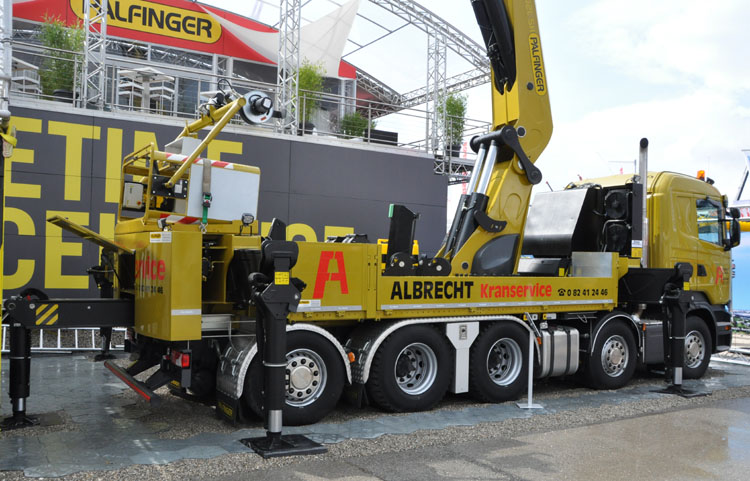

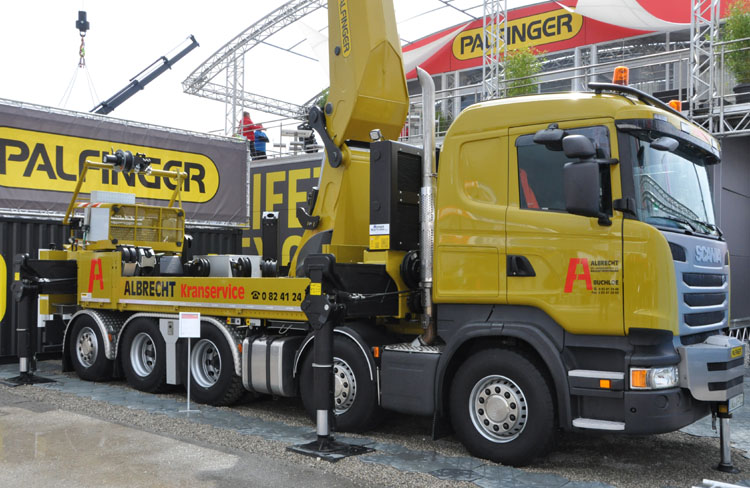

| Palfinger showed both topmodels, this is the PK200002 on a Scania R 10x4*6. It is owned by Albrecht Bau. The body and installation is pretty much identical to most of the other 200's that are delivered. |
|

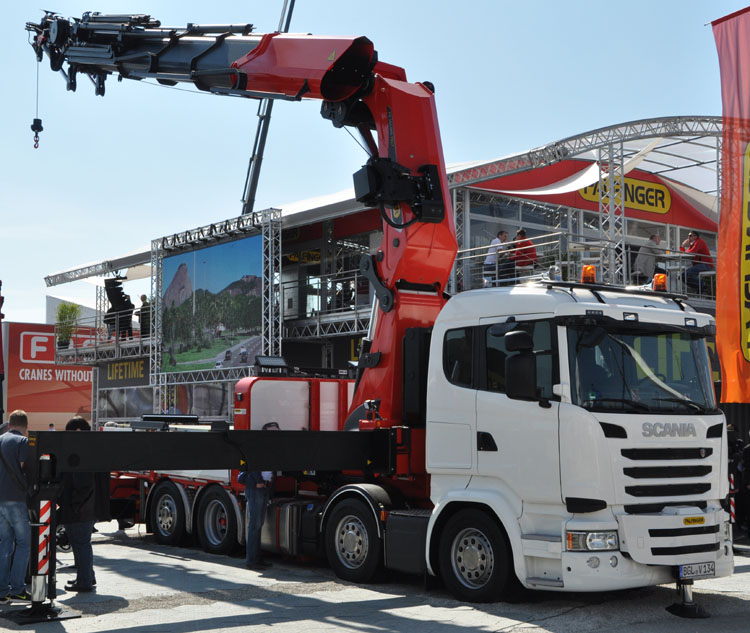

| The 2nd truck, a Scania R 8x2, was equiped with a Palfinger PK165002-TEC7. It is also rather identical to the truck shown at the Transport.CH show. Except by using an 8x2 chassis it is a bit lighter, it stays below the 32 tons. |
|

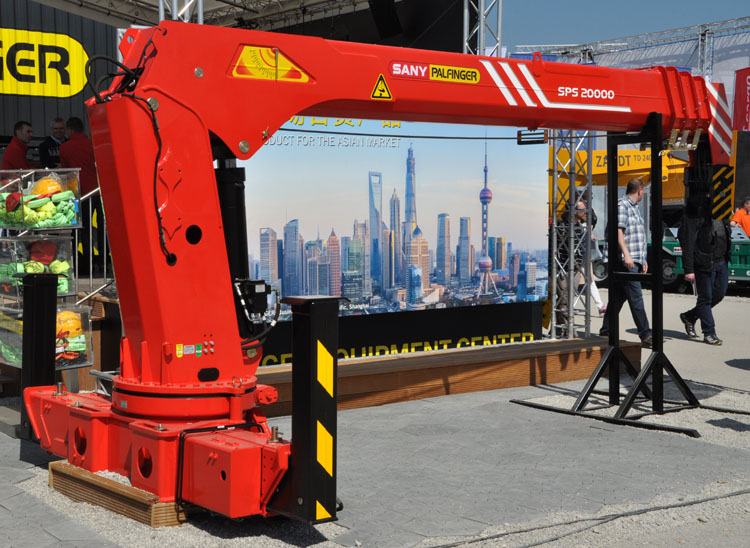

Interesting is this Sany-Palfinger SPS 20000 crane, a model made specificaly for the Asian market. It is a small telescopic crane for usage on trucks and it has a capacity of about 20 t/m and reaches up to 14,3 meters.
|
|
|
|
|
|
|

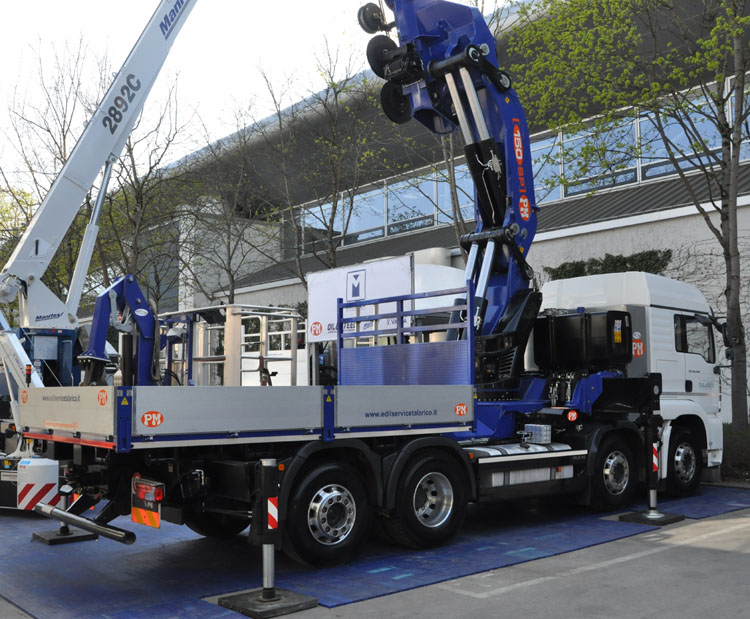

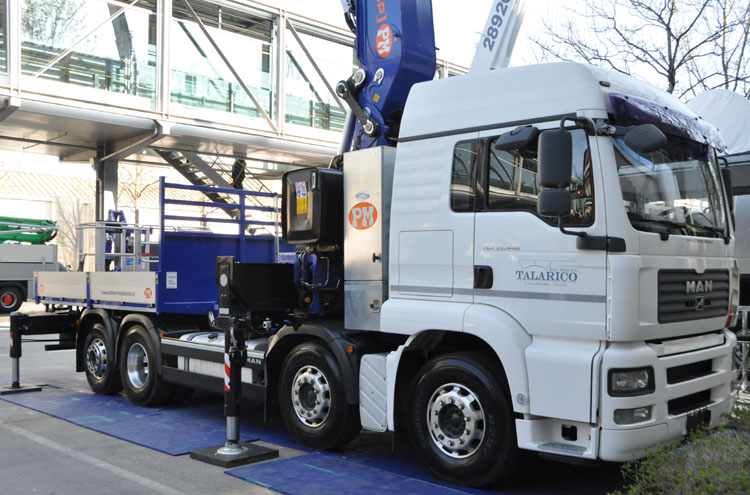

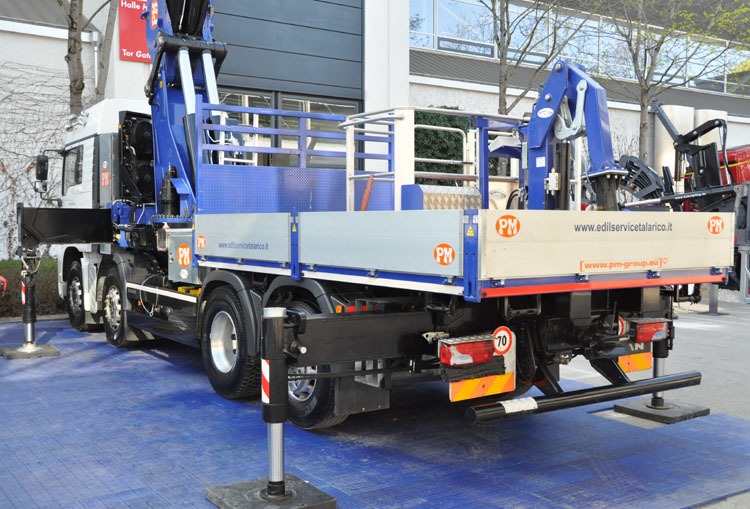

PM had several stands at the Bauma, but between the hals they parked this interesting MAN TGA 35.440 8x2 of the company Talarico. It is equiped with a PM150 crane, currently the largest PM that folds behind the cab. Here they showed the longest version, a PM150029 SP + J2016.25. That means that the base crane extends 9x to 22 meters and still lifts 3,6 tons there. With the 6x extending jib that gets 830 kg at about 35 meters.
|
|
|
|
|

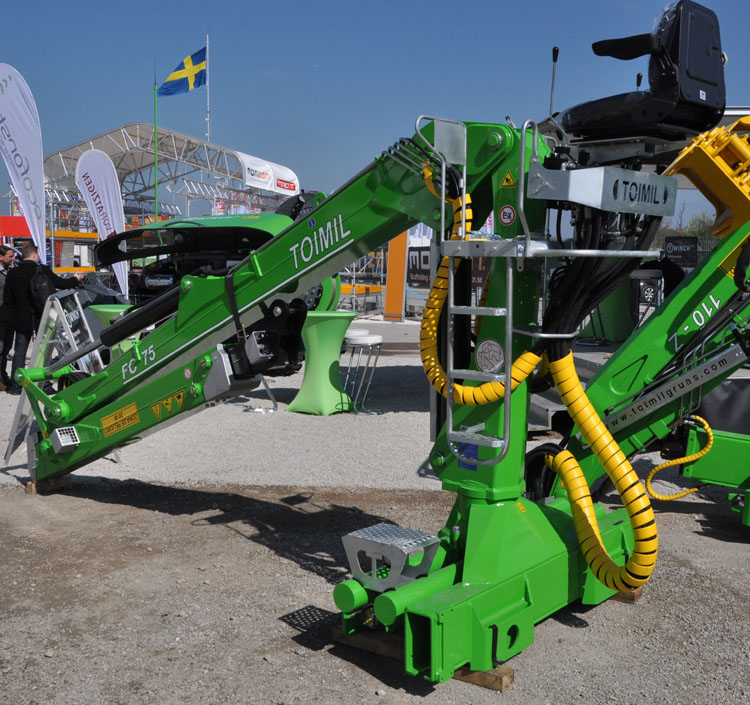

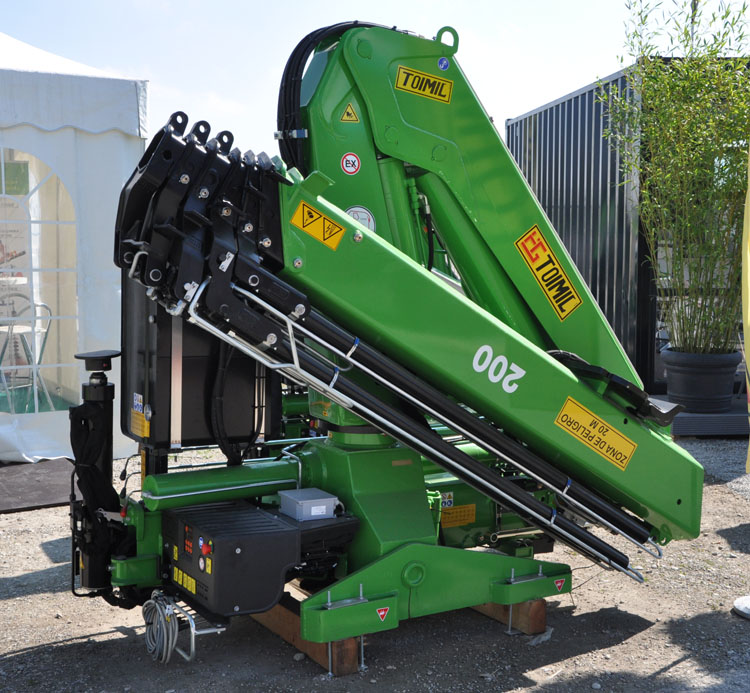

The spanish company Toimil showed a truck crane and a logging crane. The knuckleboom is the 200/6S that reaches 18,4 meters and lifts 550 kg there. I don't have any info on the FC75 logging crane.
|
|
|
|

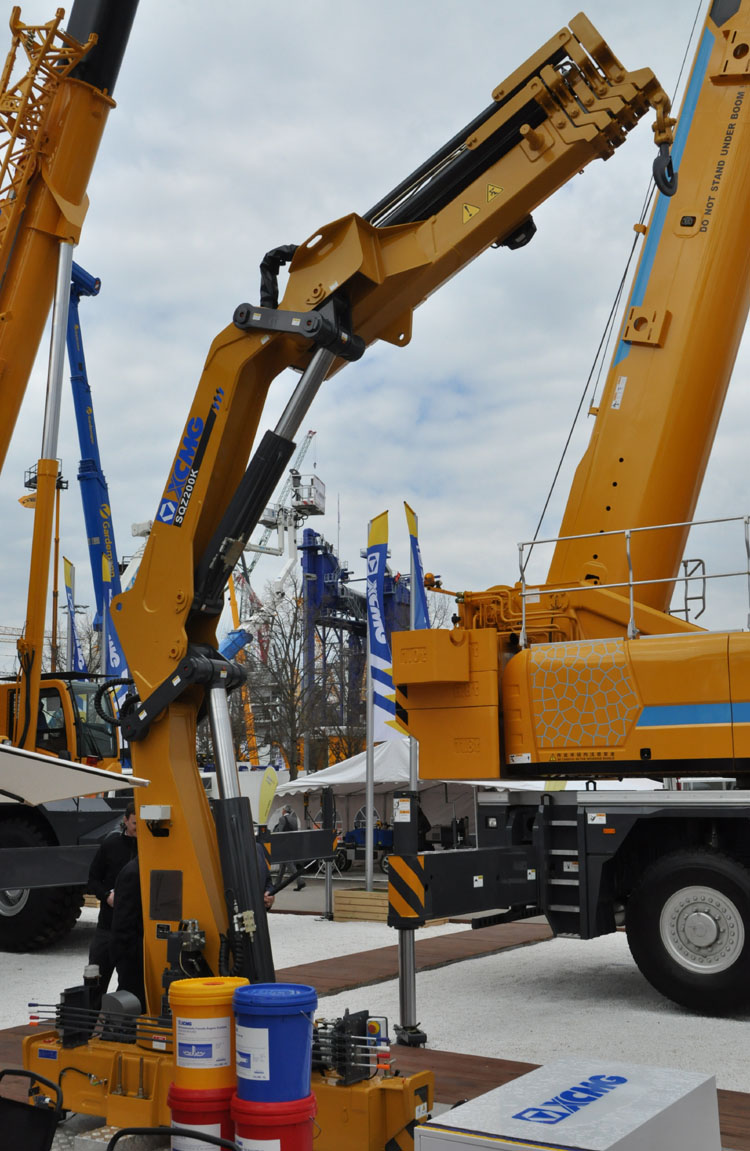

The chinese company XCMG also produces a knuckleboom. This is the SQZ200K, a 20 t/m crane with an outreach of 11,62 meters with 1,35 tons of load. Maximum load is 8 ton at 2,5 meters.
|
|
|
|
