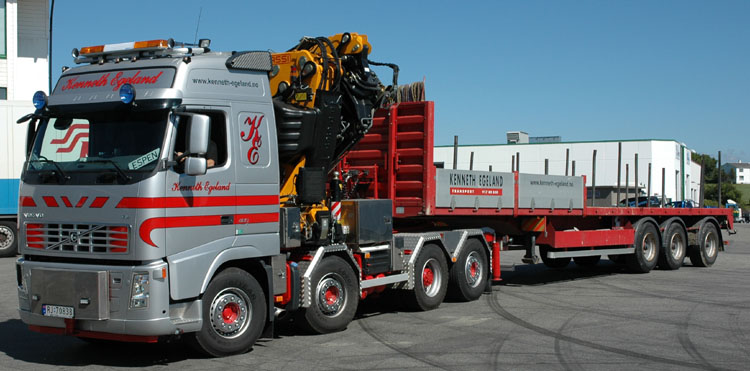

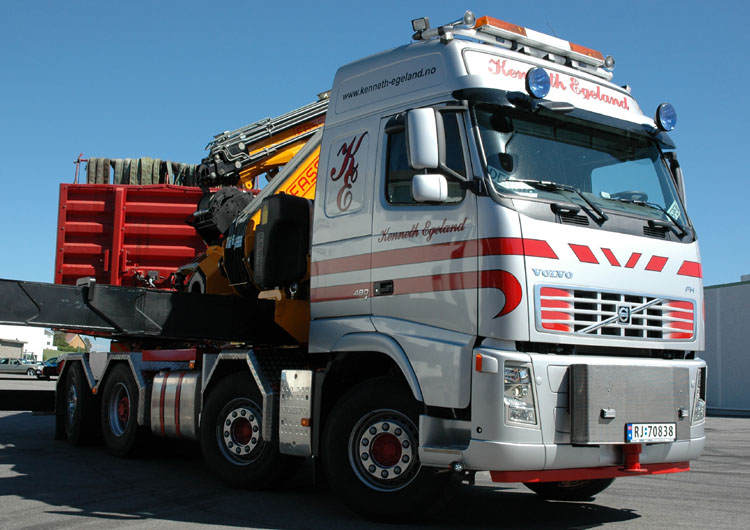

In 2007 this Volvo FH480 was added to the fleet of Kenneth Egeland Transport from Sola (near Stavanger - N). |
|

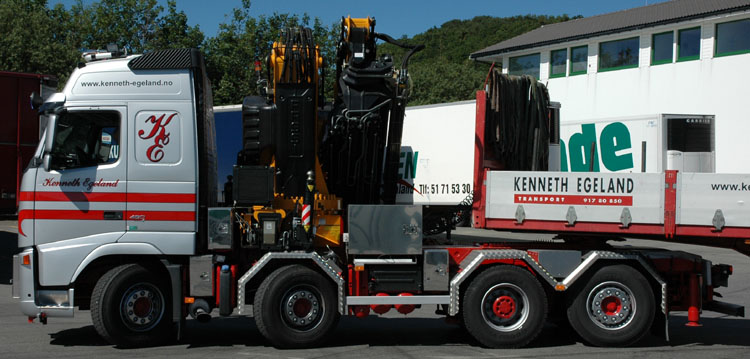

It is a 8x2*6 tractor, meaning it has 2 steering front axles and a steering tag axle.
|
|

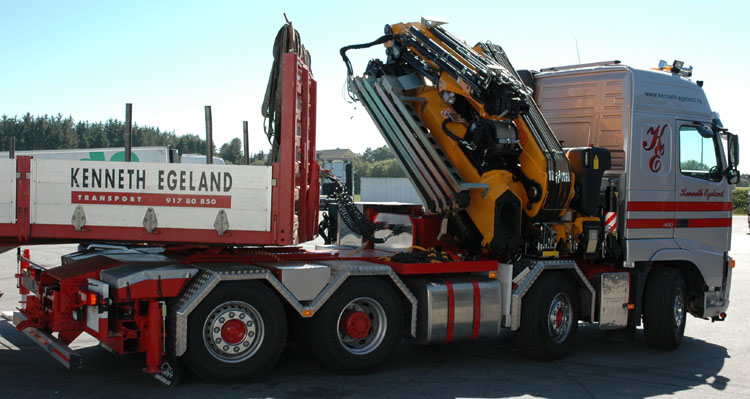

Behind the cab stands a Fassi F1100AXP.28, a crane with a lifting capacity of 85,8 ton/mtr. The 8x extending boom reaches up to 19,65 meter where it still lifts 3,32 tonnes.
|
|

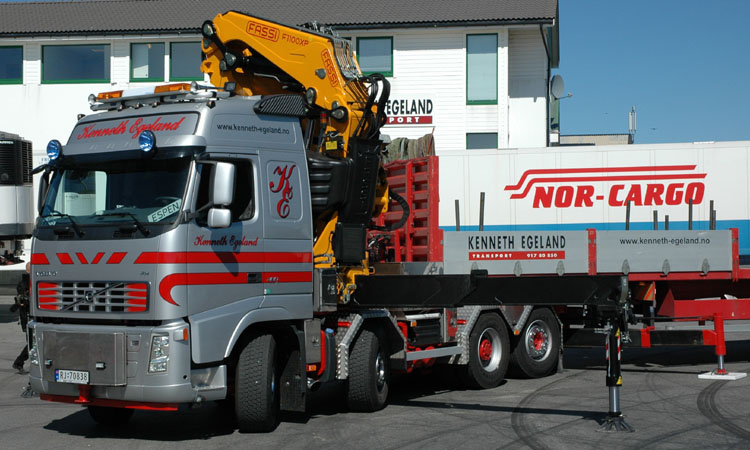

Here the crane was demonstrated on the yard, the legs are already extended.
|
|
A L426 jib is mounted on the crane, a 6x extending version that gives a total outreach of 31,85 meters. The crane also has a winch.
|
|

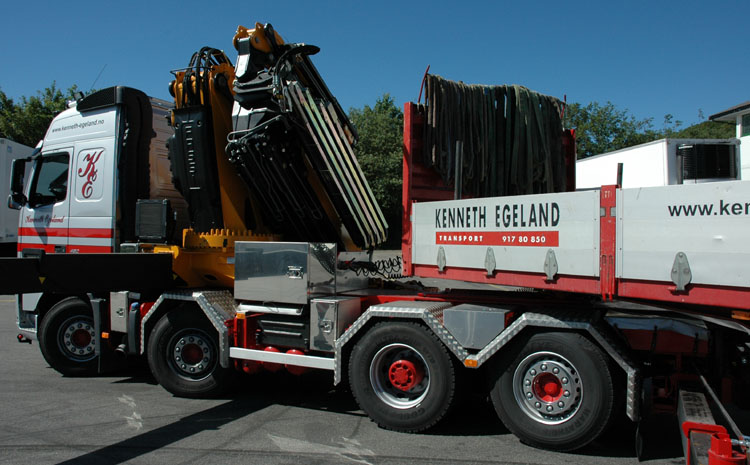

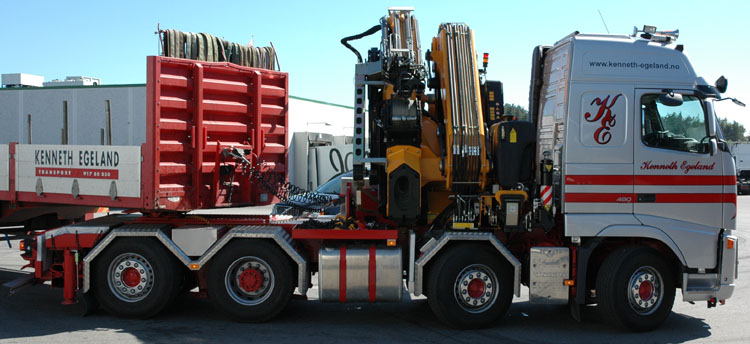

The steering tag axle gives the truck a small turning circle, despite the longer wheelbase that is necessary with such a crane. The fifth wheel can slide to fit different trailers.
|
|

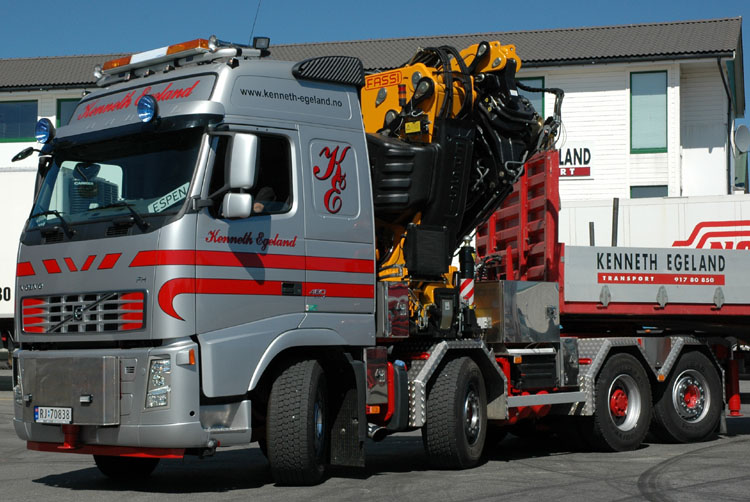

A 5th support leg is mounted to the front. A reinforced chassis is not availble, it has been mounted to the standard chassis extension that is delivered by Volvo.
|
|
The crane is being unfolded... |
|
|

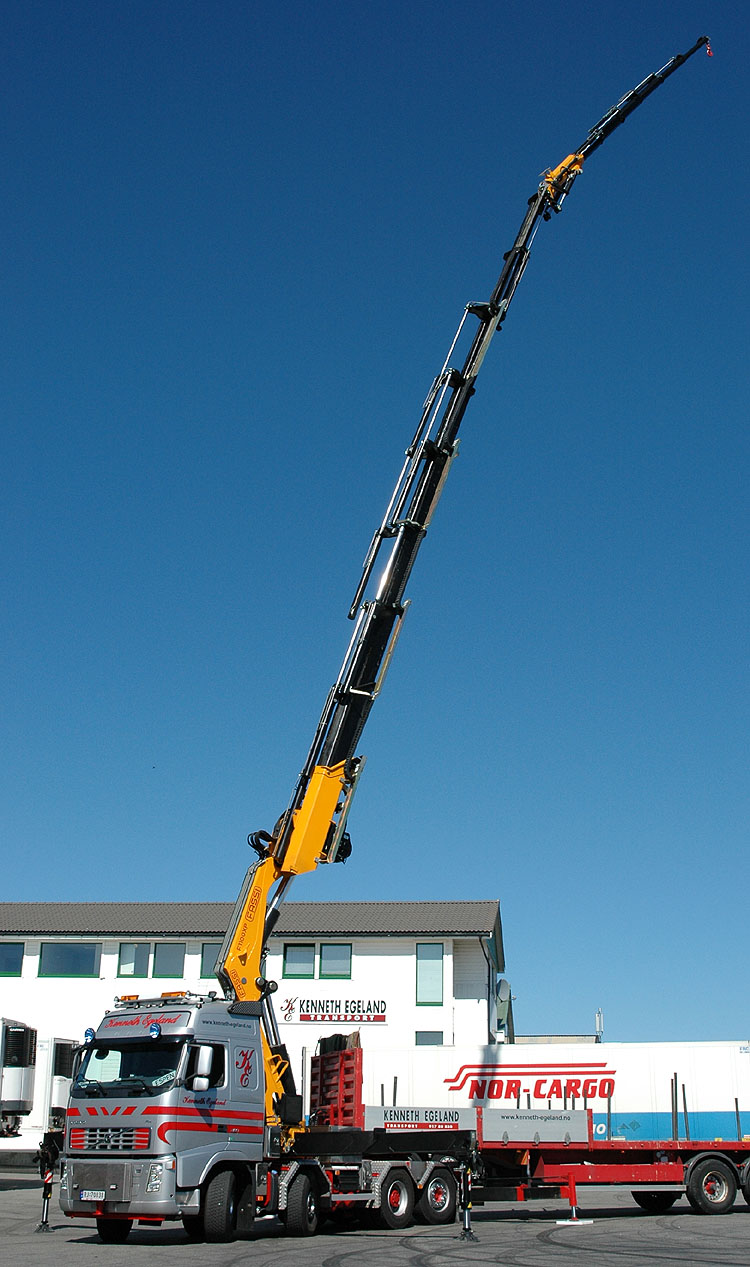

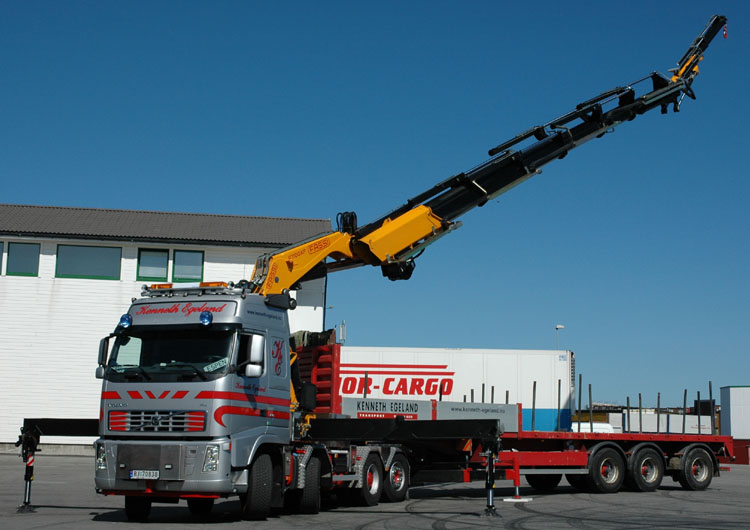

...and reaches full height here. |
|
Thanks to the driver for this demonstration! |
