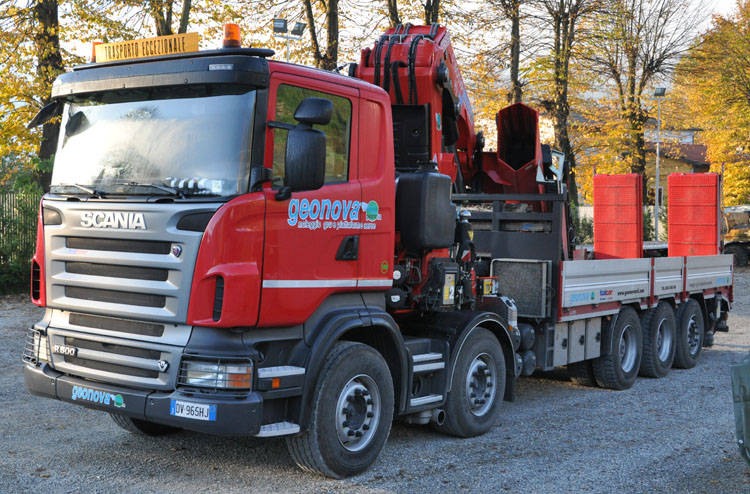

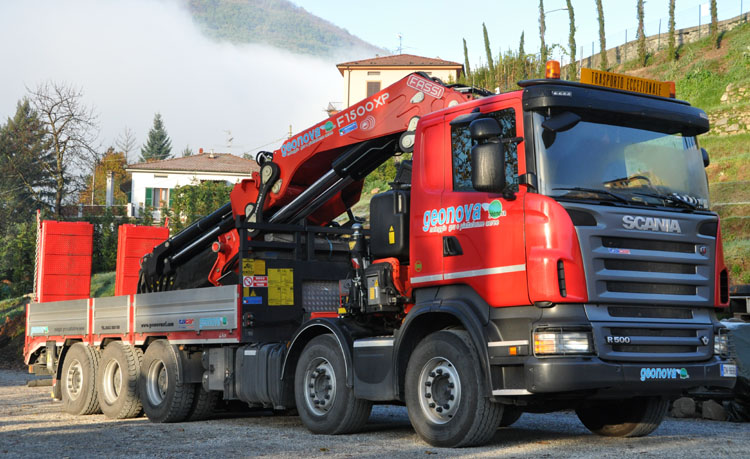

| The company Geonova from Fornoli (I) is a rental company that also owns a few crane trucks. This is the heavies one, a 5-axled Scania R500. |
 |
This Scania R500 10x4*6 (steering tag axle) is a rare unit for Italy. It gets, because of a special transport permit, an official total weight of 53 tons (9+9+13+13+9 ton)! This gives it a payload of about 17 tonnes.
|
 |

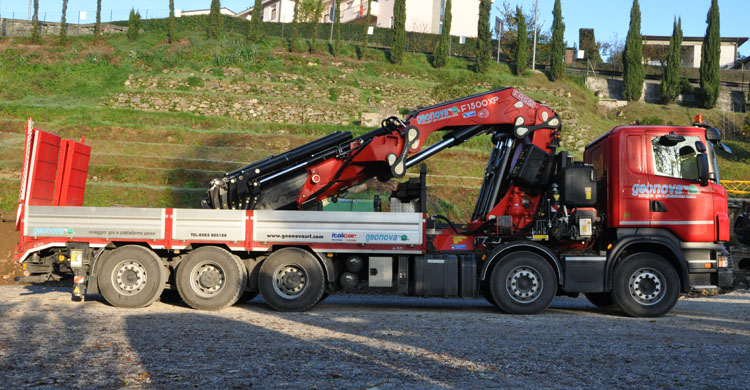

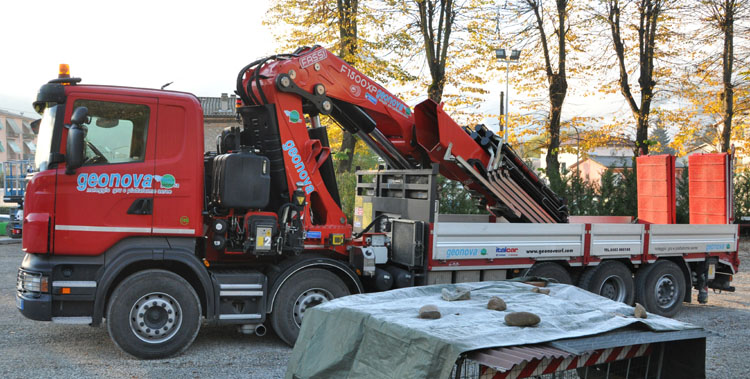

The trucks has been equiped with a Fassi F1500AXP crane. It's the 8x extending version that reaches up to 19,4 meters and lifts 4,465 tonnes there. With the L516 jib the outreach becomes 31,3 meters.
|
 |

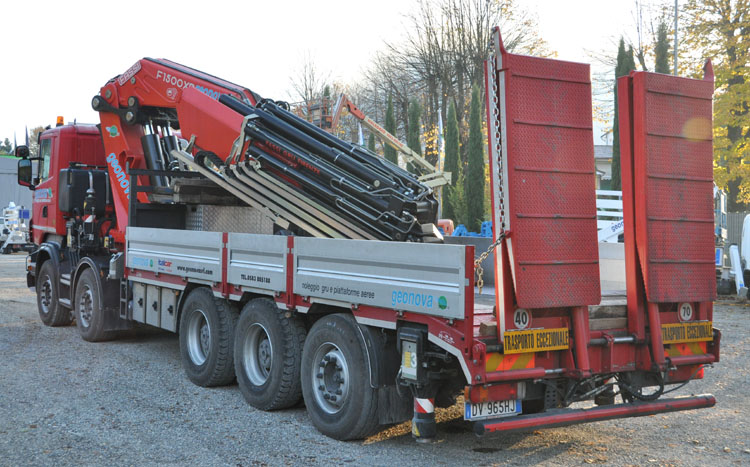

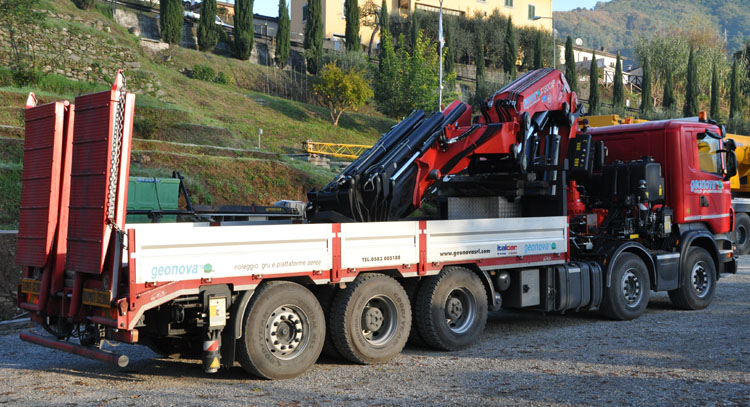

The long chassis is filled with a flatbed that runs down in an angle at the rear, where it continues in 2 foldable driving ramps. With these, it is possible to load a lift or another type of equipment.
|
 |
| The total length of this truck is about 11,5 meter. |
 |
An interesting and rare vehicle, especially in Italy!
|
| |
