The company Camoni from Hvidovre (Copenhagen - DK) has got a fleet that also contains several crane trucks, this is currently the heaviest one. |
|

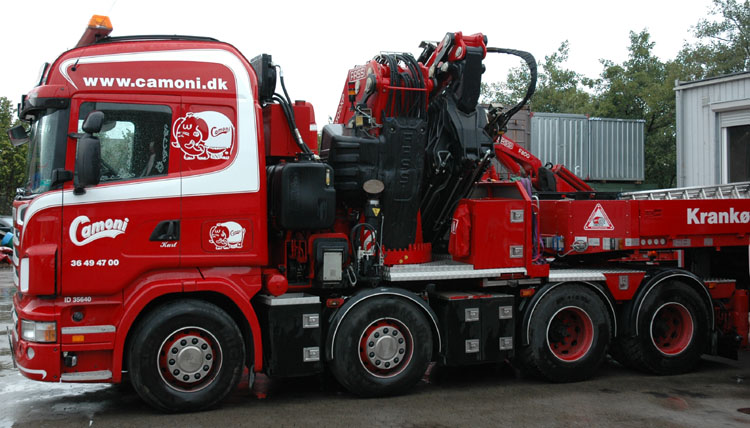

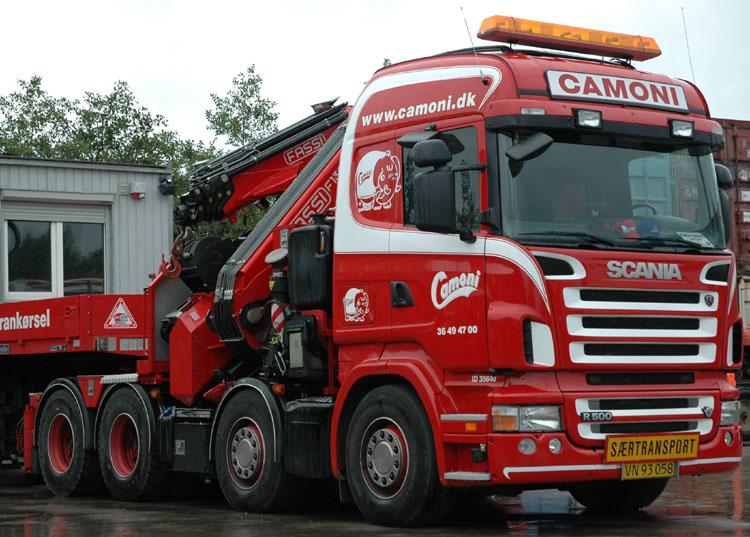

It is a 4-axled Scania R500 tractor is 8x4 version. It is equiped with the Highline cab. |
|

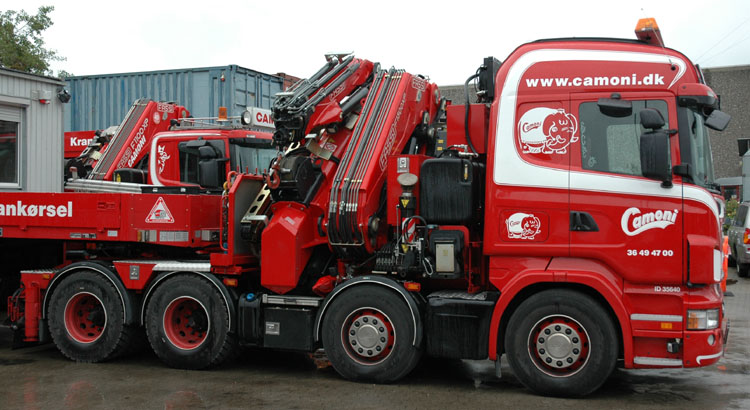

Behind the cab stands a Fassi 1300, a crane with a lifting capacity of 92,5 ton/mtr. It is a F1300AXP.26 with a L516 jib. The base crane reaches 15,5 meter far where it can lift 5,43 tonnes. With the 6x extending jib the outreach becomes 27,55 meters, with 3 more manual extensions it gets 33 meters. |
|

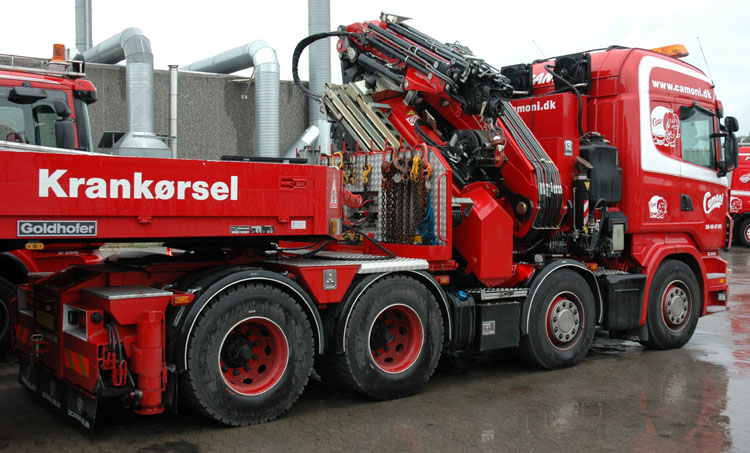

Behind the crane they mounted a bord to hang up the chains. The trailer connections have also been integrated into this bord. The crane has got a winch. Nice extra is the cover at the bottom of the telescopic boom. |
|

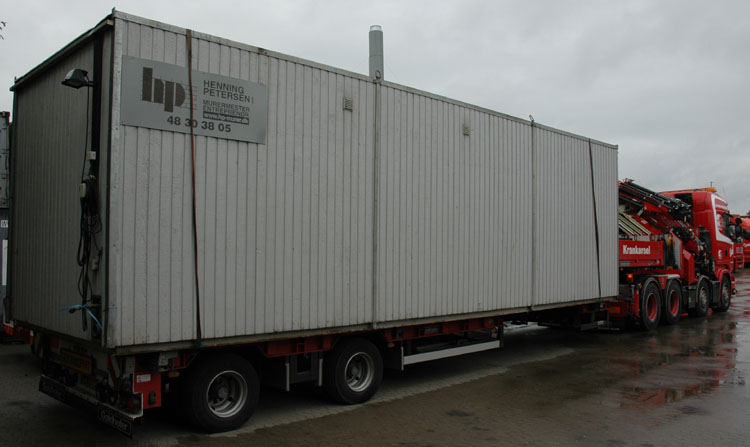

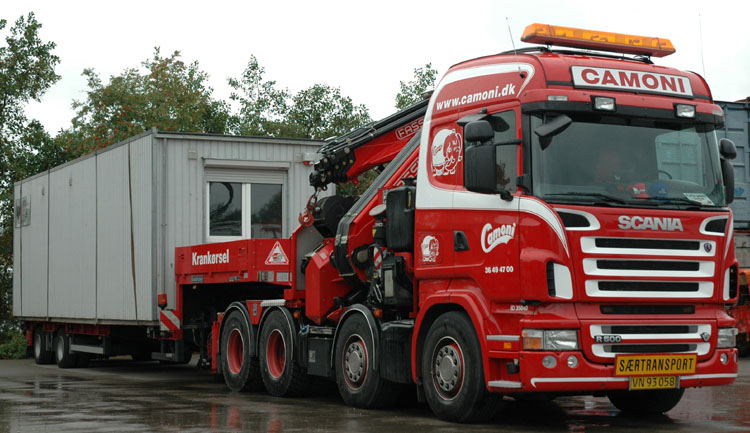

Behind the tractor hangs an extendable Goldhofer semi-lowloader, loaded here with a big construction unit. The transport of these units is part of it's every day work. |
|
The oiltank of the crane is mounted above the front outriggers, above that stands the dieseltank and of top of that are the coolers for the hydraulics. |
|
The truck has gotten a very nice finish. The space between the axles was filled with toolboxes.
Again a very nice danish unit!! |
|
