MAN TGA 41.480 - Trost

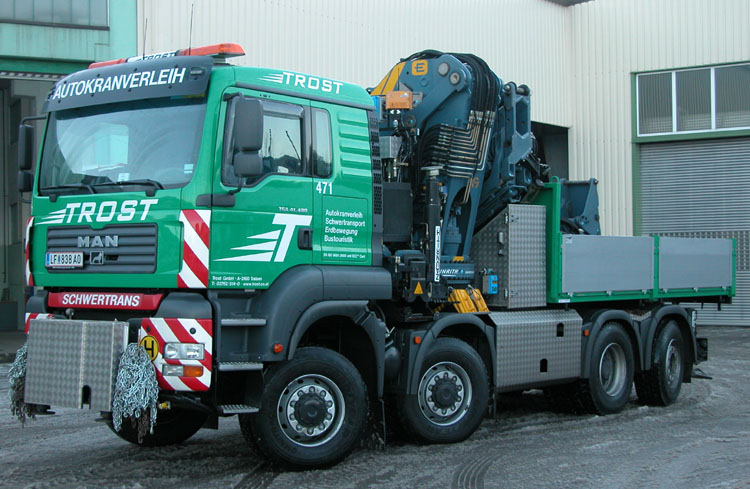

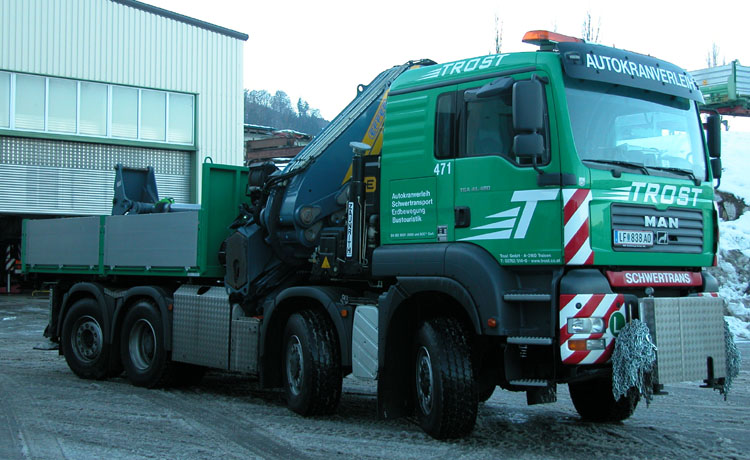

This is a MAN TGA 41.480 of Trost from Traisen (A).

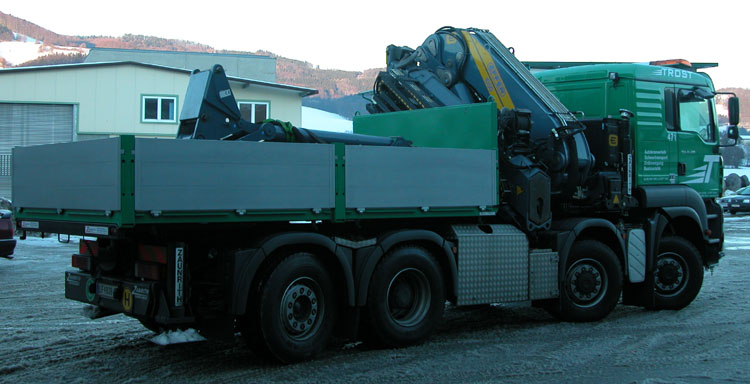

Behind the cab stands an Effer 1050 6S, a crane with a lifting capacity of about 90 t/mtr. The outreach of the base crane is 16,86 meters at which it can lift 4,41 tonnes. With the 4x extending jib, that lies in the loading box here, an hydraulic outreach of 27,3 meters is reached. With 2 manual extensions the total outreach becomes 31,82 meters.

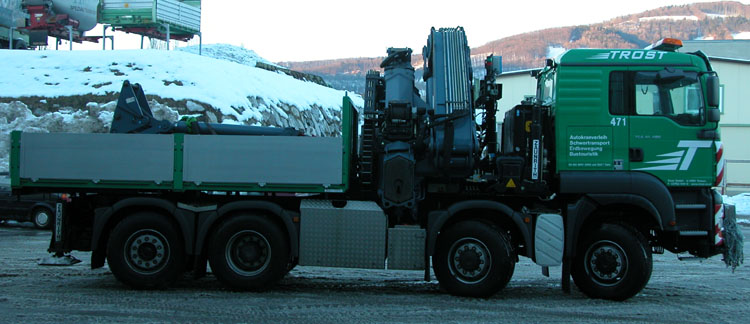

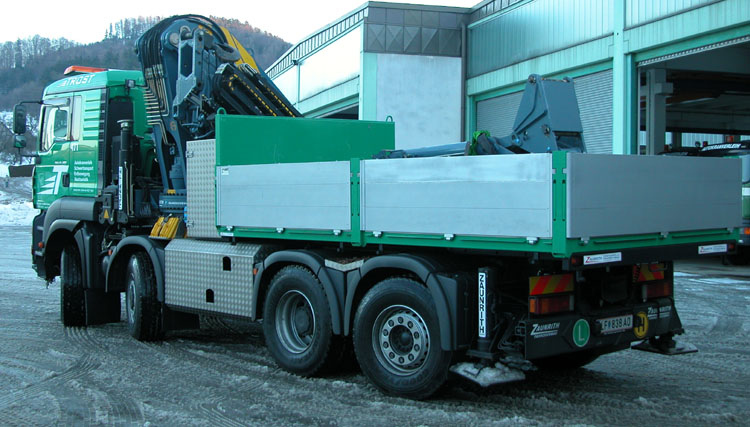

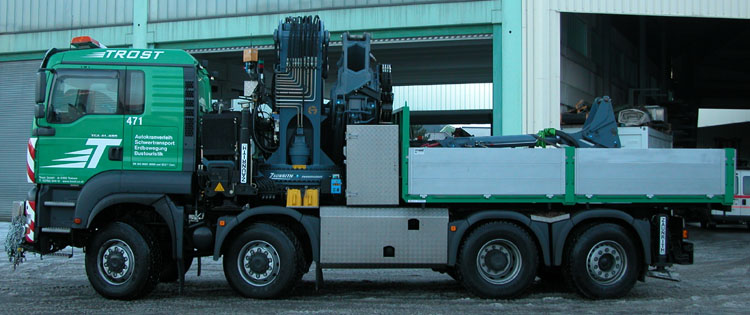

It is an 8x6*6 tractor, a special version that is converted from an 8x8. The rear axle has been replaced by a non-driven but steered unit. The loading box can be taken of so that it becomes a tractor.

This type of chassis gives gut manouvrability. The steering rear axle gives a short turning circle and the 2 driven front axles make shure that the trucks gets pulled around the corner on looser surface.

The crane supports on 6 outriggers, 4 normal ones and 2 at the front bumper.

Again a very interesting combination!
