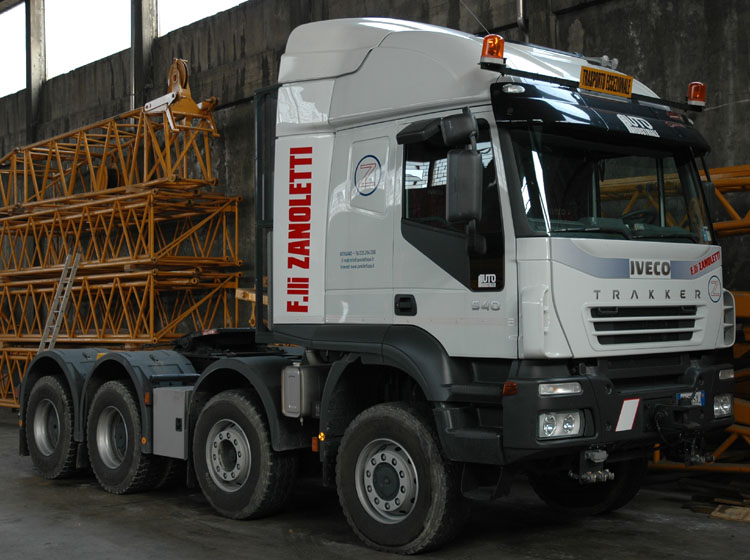

The italian company F.lli Zanoletti from Bergamo owns this Iveco Sivi tractor. |
|

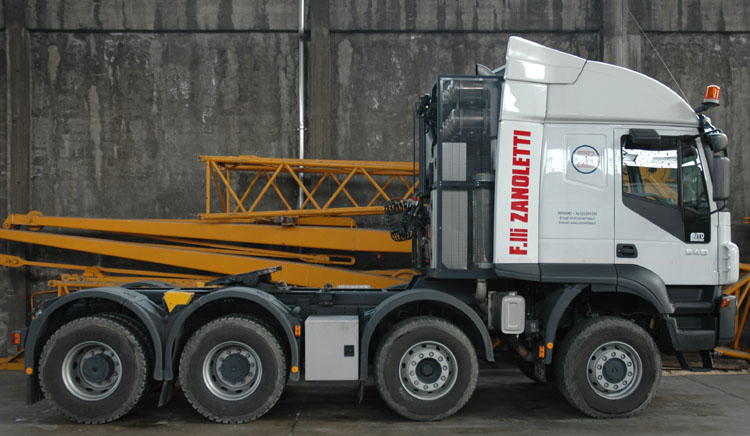

It is a Trakker with the 13 liter Cursor engine that delivers 540 hp. It's the 8x6 version which is based on the 6x6 Trakker.
|
|
Between the engine and gearbox hangs a WSK440, a hydraulic torque converter from ZF.
|
|

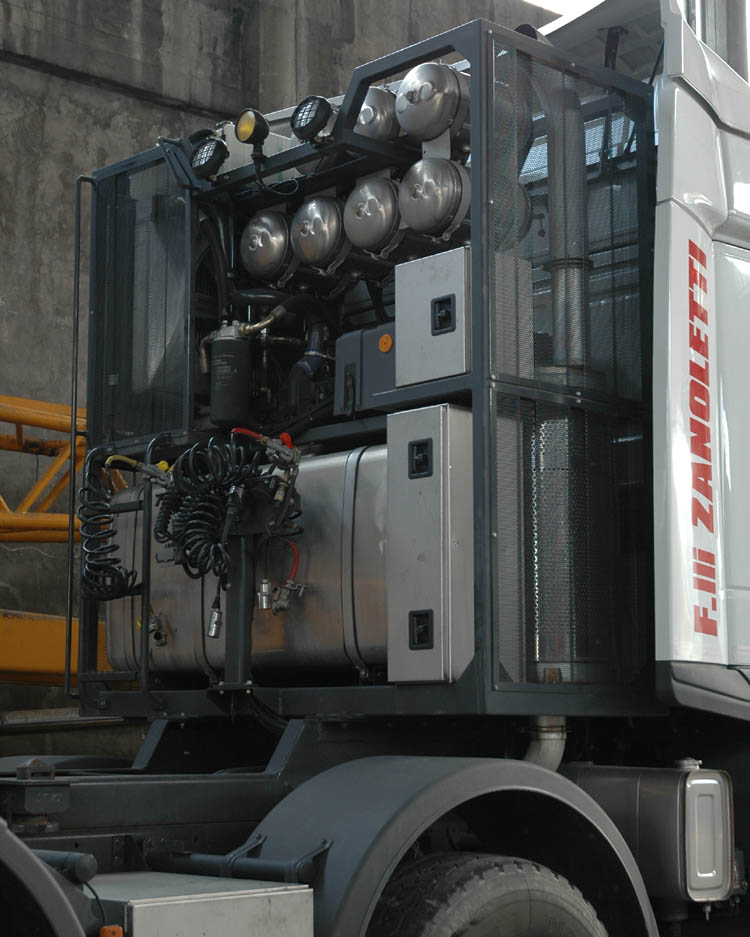

Behind the cab stands a tower that holds everything that doesn't has a place at the chassis anymore. At the bottom is a large dieseltank, beside it are 2 toolboxes and the mufler. Above the tank lies the battery compartment, beside that there is a (hardly visible) heat exchanger for the WSK. Above those are some air barrels. To the far left there are 2 coolers and a cooling fan, one is an extra radiator for the cooling water and the other is an oil-air cooler for the WSK.
|
|

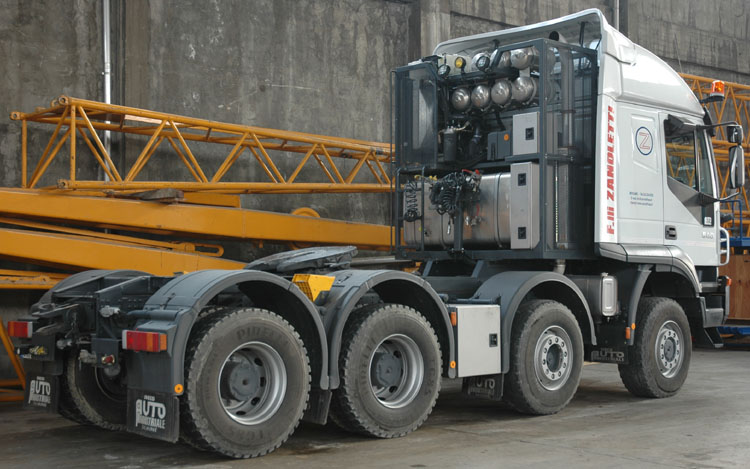

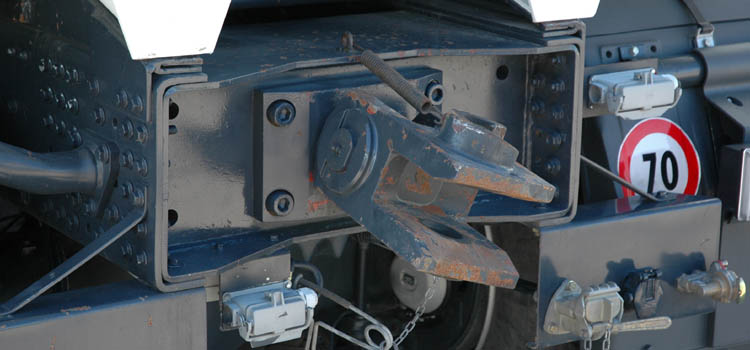

The rear side of the chassis has a heavy drawbar coupling so that the tractor can also be used as a ballasted prime mover. Here we see that coupling, a type that is rather common in Italy.
|
|

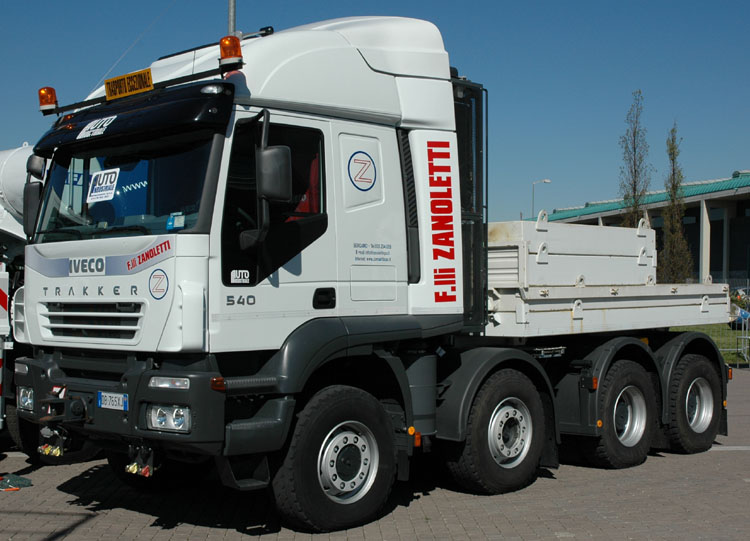

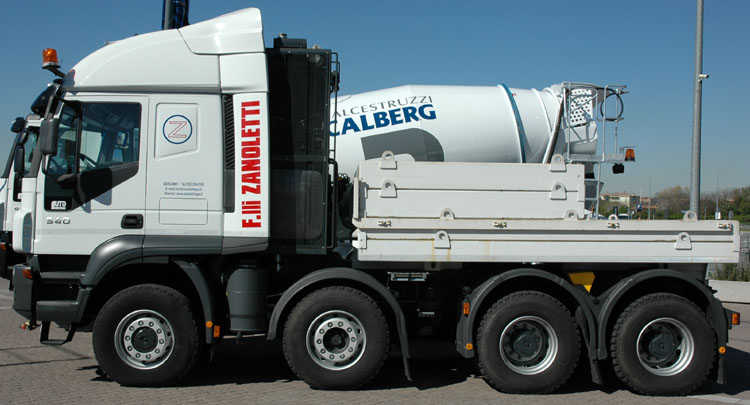

The truck is on display at the Edil fare in Bergame at the following pictures, now it was ballasted. It was displayed by the local Iveco dealer, Auto Industriale.
|
|

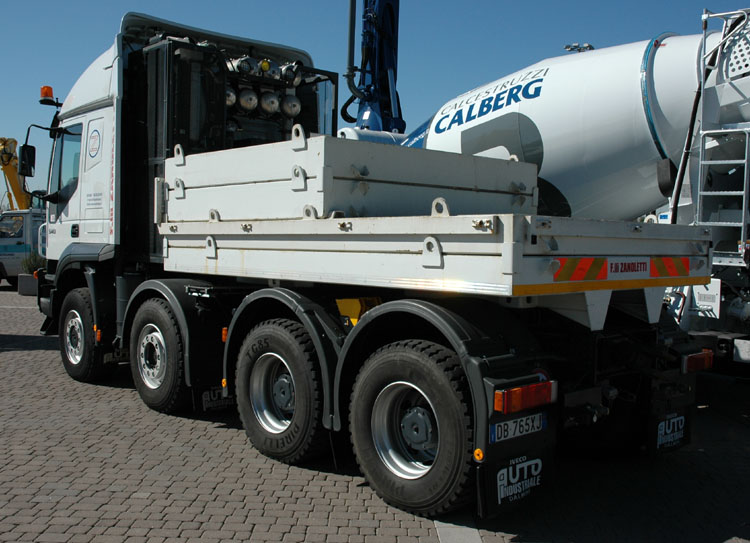

The ballast consists of several steel plates. The one at the bottom is connected to the chassis with twist locks.
|
|

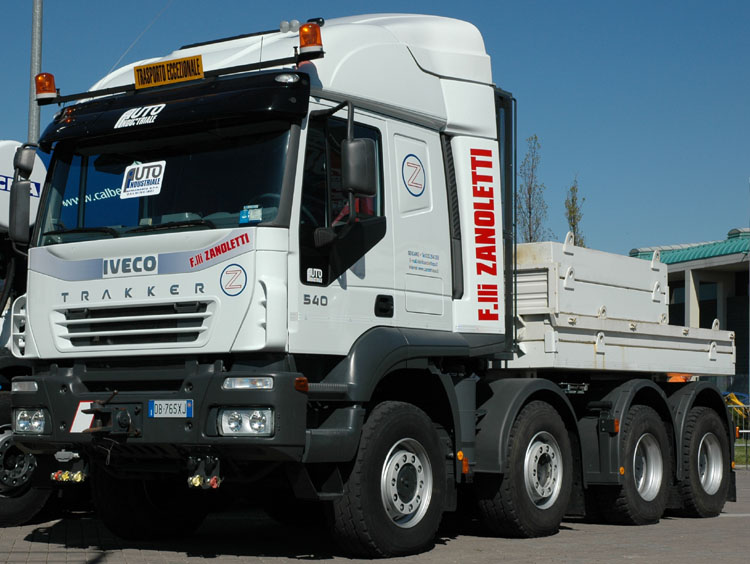

The truck has a similar heavy coupling at the front bumper, it can be used for pushing a heavy transport.
|
|
To me these heavy Iveco 8x6's are still among the most beautifull heavy transport tractors!!
|
|
