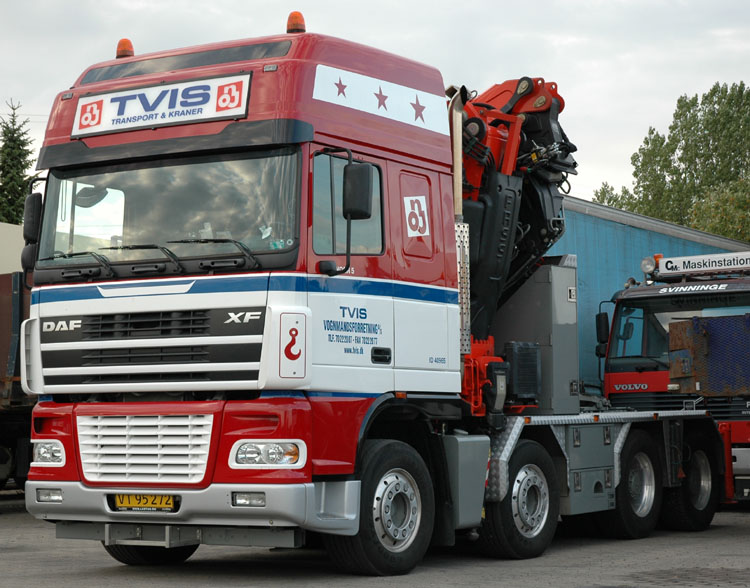

The company TVIS from Aulum (DK) also has a yard near Copenhagen. There I could photograph these 2 DAF XF95 8x4 tractors.
|
 |

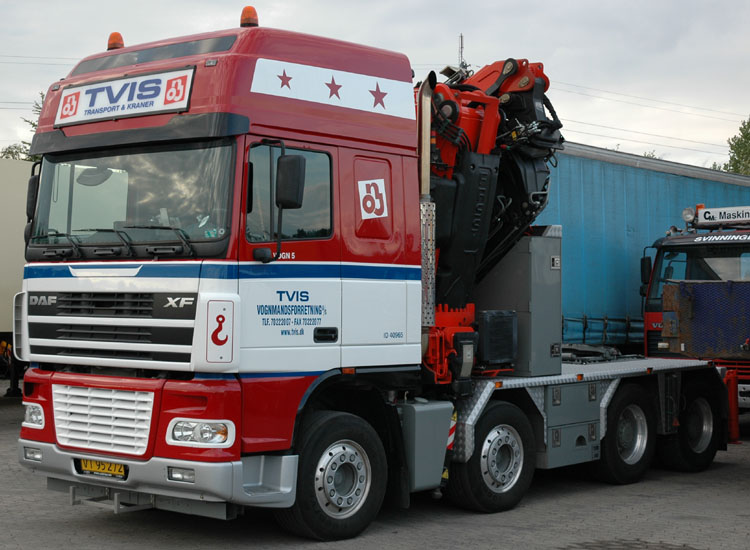

The tractors are equiped with the superspacecab, not often seen at crane trucks.
|
 |

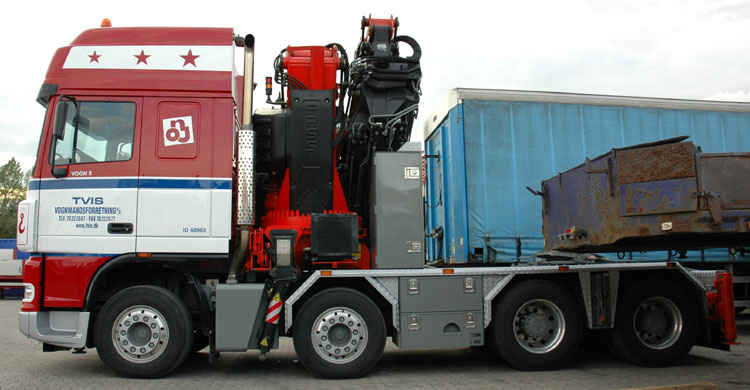

| Behind the cab stands a Fassi 1100, a version with 8 hydraulic telescopic extensions and a 6x extending jib. These give an outreach of 31,55 meter where it can lift 900 kg. With the 3 manual extensions the outreach becomes 37 meter. |
 |

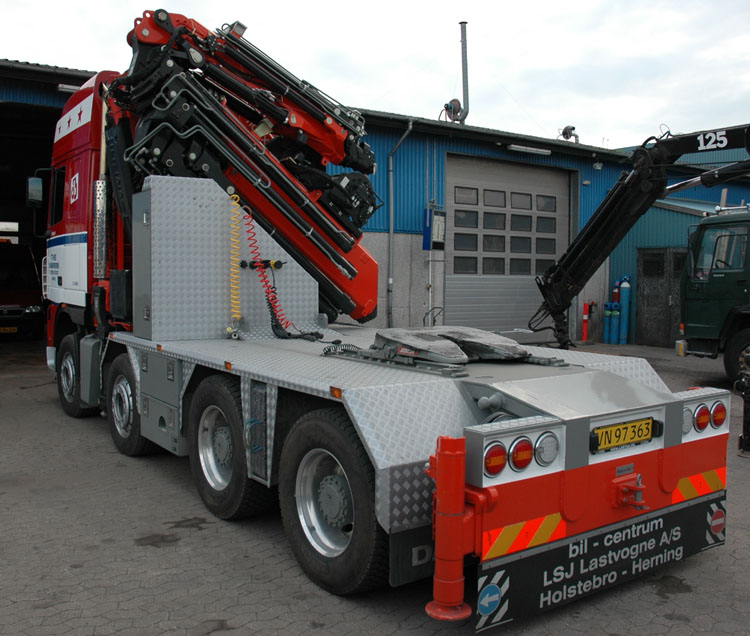

This is the 2nd DAF, this could be photographed from the rear. Behind the crane they mounted a toolbox that fits underneath the crane. The plates for the outriggers are stored between both rear axles.
|
 |

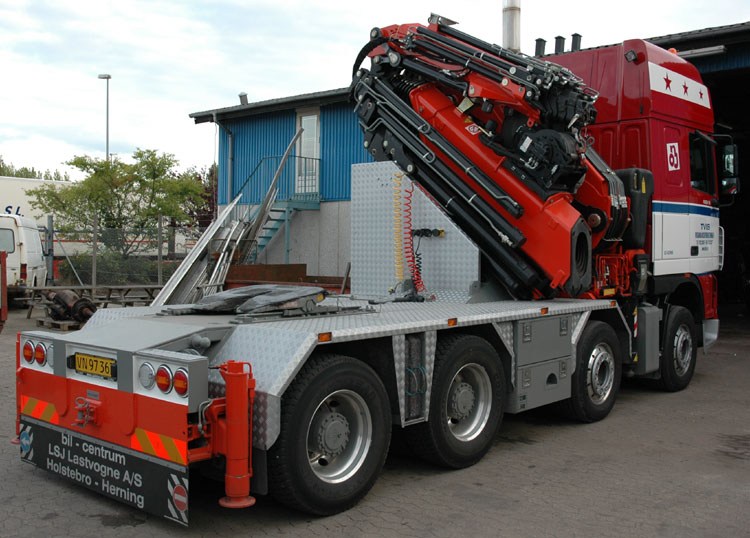

The tractor can alse be used with a loading box. This than mounted to the 2 plates in the front and on the 2 balls at the chassis at the rear.
|
 |

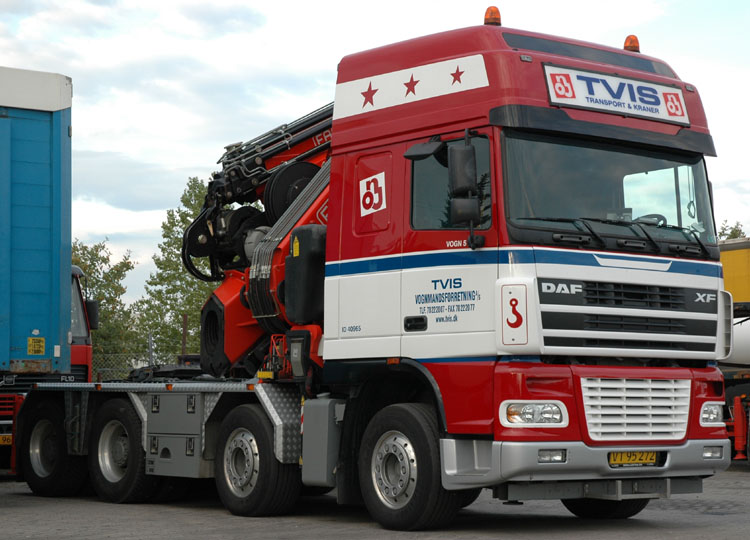

Here it is visible that the cranes have been mounted very compact, there is barely any free space between the crane and the cab anymore. The cranes have been mounted by TMP Hydraulik. This company also arranged the chassis reinforcements to the front. Behind the front bumper there are 2 outriggers to give the crane stability to the front, they are nearly invisible on these photos.
|
 |

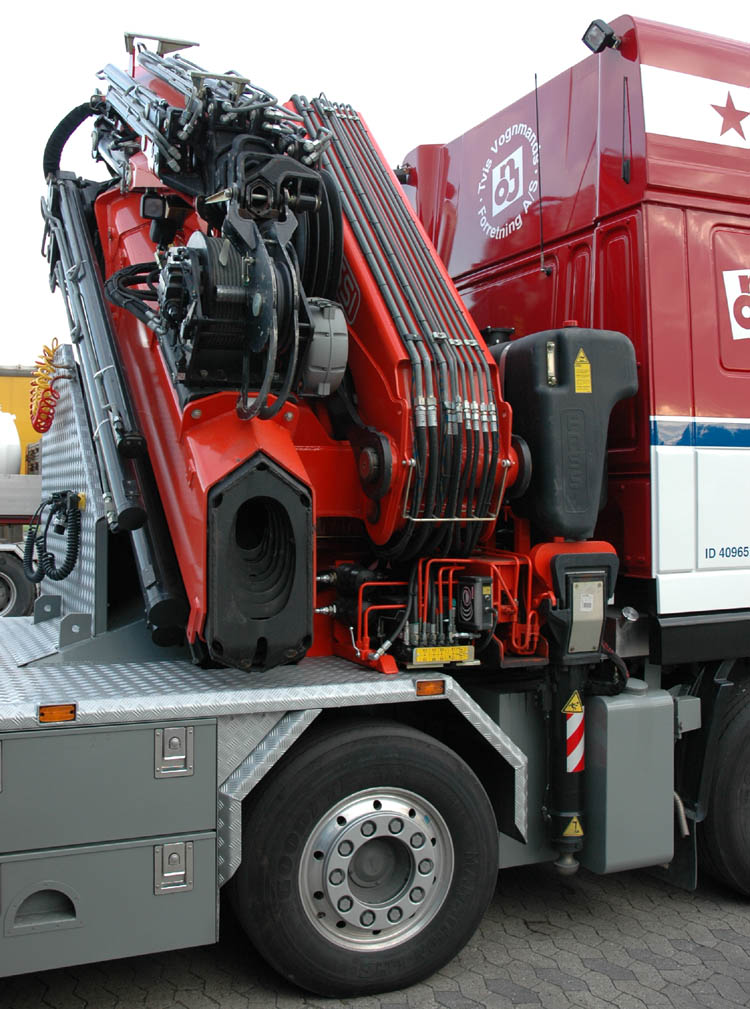

At this photo you can recognize one of the ouriggers, to the right of the entrance of the passenger, behind the steel beam. A nice solution that doesn't require any changes to the front bumper.
|
| |
