TII Group: Nicolas / Scheuerle |
 |
 |
 |
 |

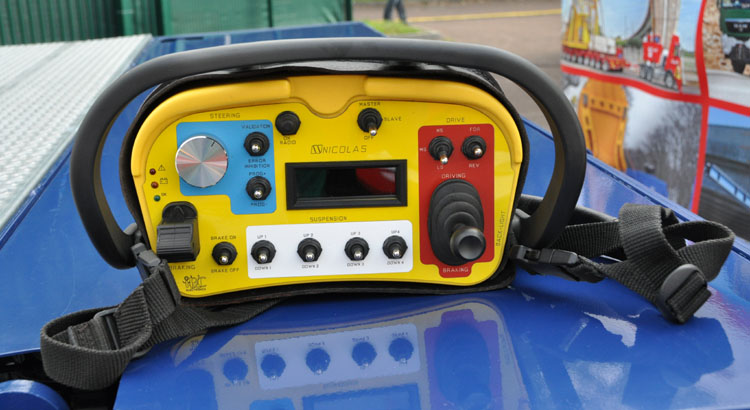

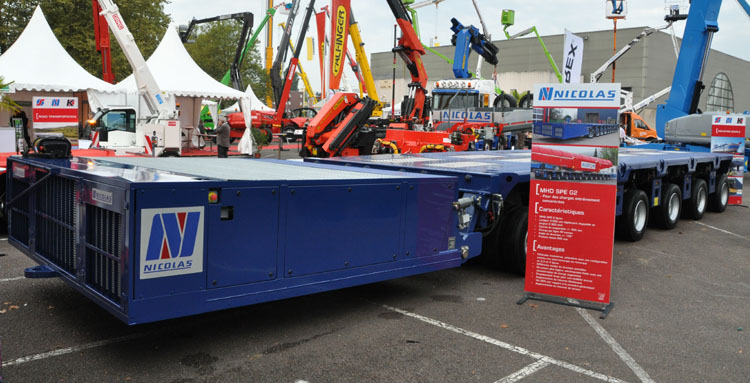

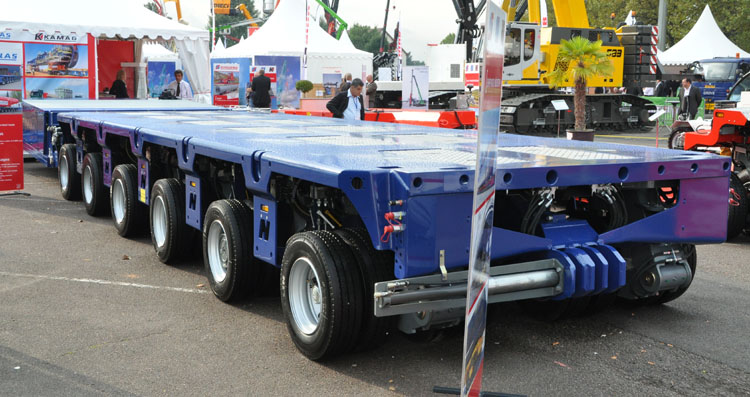

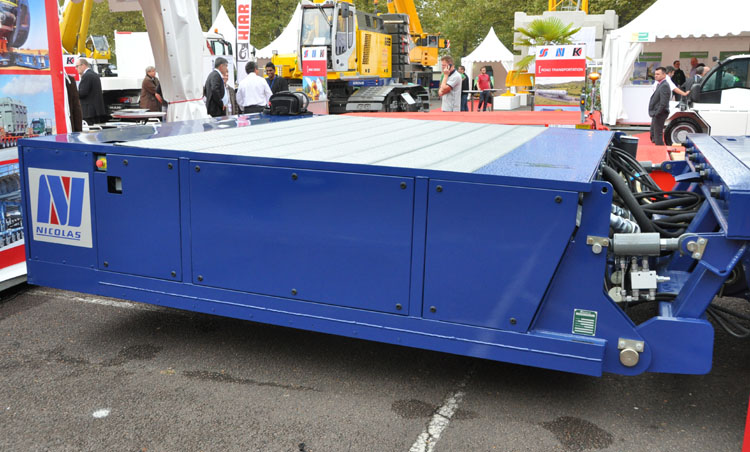

| The TII Group, that contains Nicolas, Scheuerle and Kamag showed 2 Nicolas vehicles at their stand. This is a 6-axled module with powerpack called MHD SPE G2. The maximum load per axle-line is 40 tonnes. More modules can be connected to get to the desired loading capacity. The powerpack can be tilted upwards hydraulically to provide a better angle for slopes. The unit is controlled by the displayed remote control. |
 |
 |
 |
 |

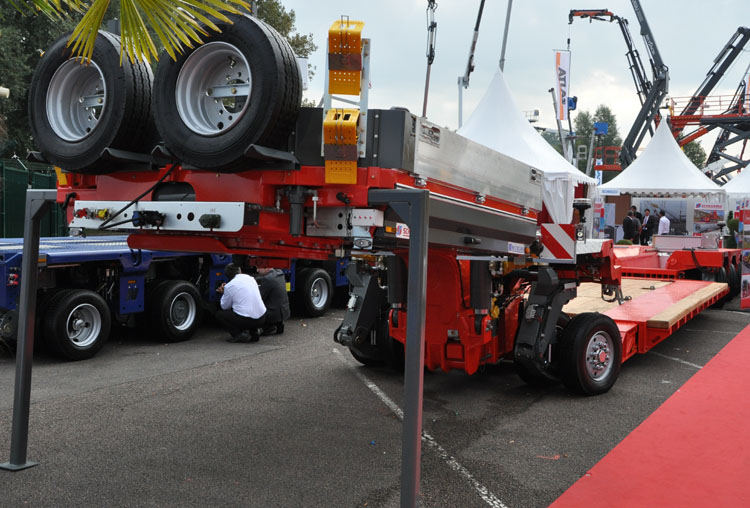

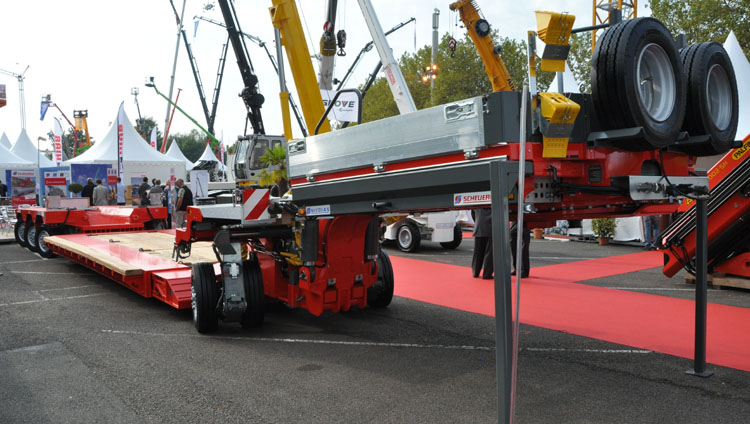

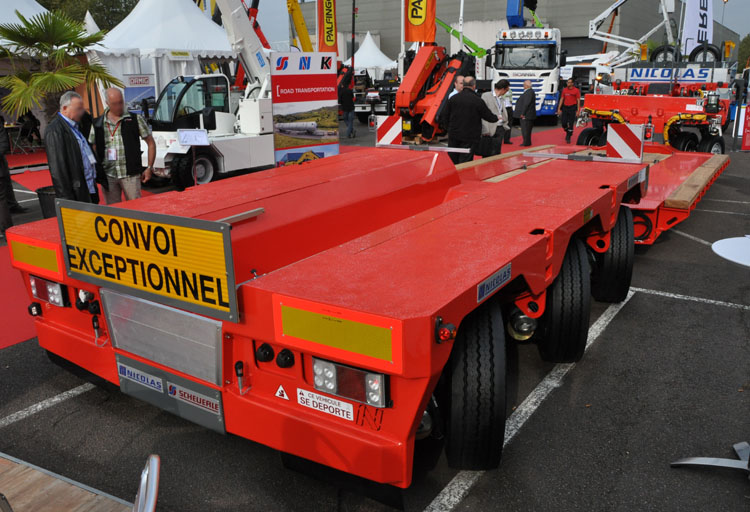

The 2nd trailer is this Eurocompact 1-3 PLST 70/107, a combination of a 1-axled dolly and a 3-axled module. With axle loads of 12 tonnes and a fifth wheel load of 22,6 tonnes a total weight of 70,6 tonnes is reached. Loading capacity is about 47,7 tonnes. The extendable floor offers a length of nearly 7 meter up to 10,7 meter. The very compact dolly can be removed.
|
 |
 |

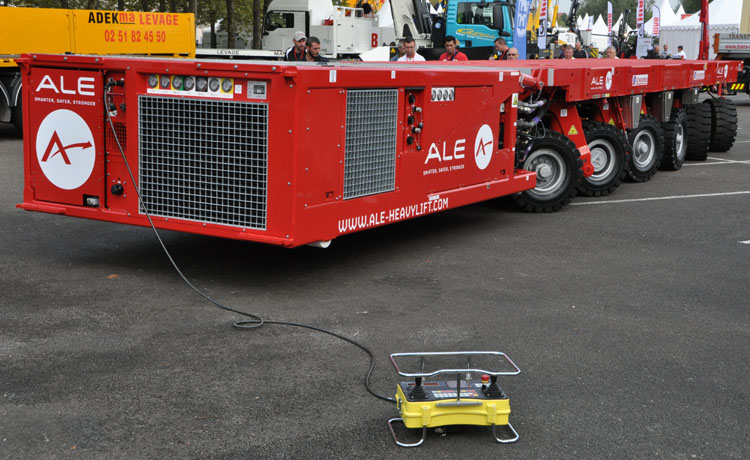

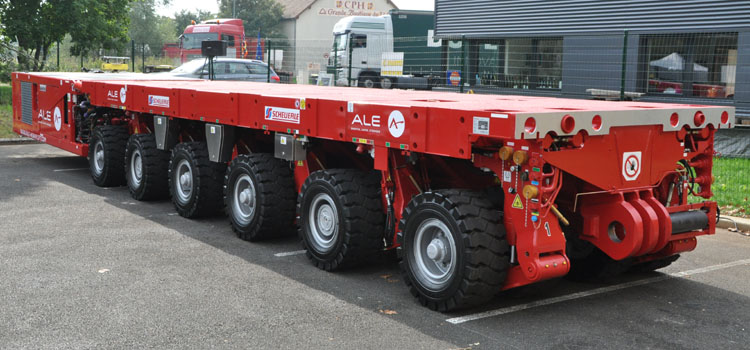

| The demo area was used to show this Scheuerle SPMT with 6 axle lines. It is controlled with the remote control that lies in front and it is soled to A.L.E. |
| |
Sygmat: Ormig / Sennebogen |
 |
 |

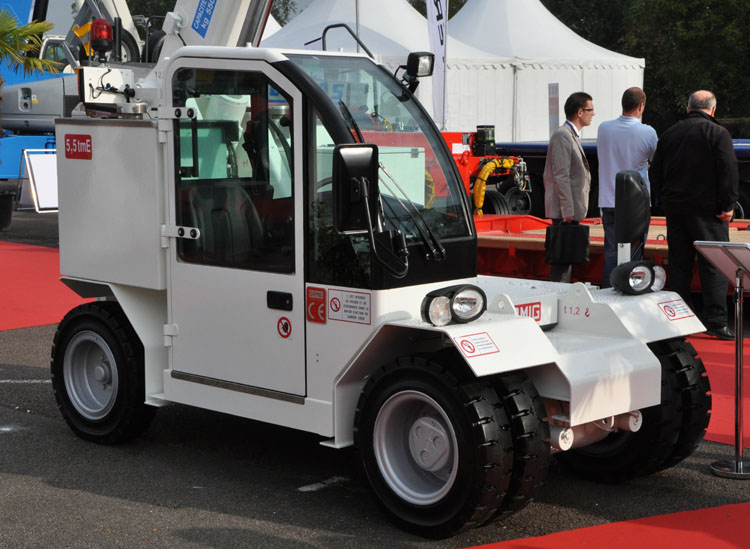

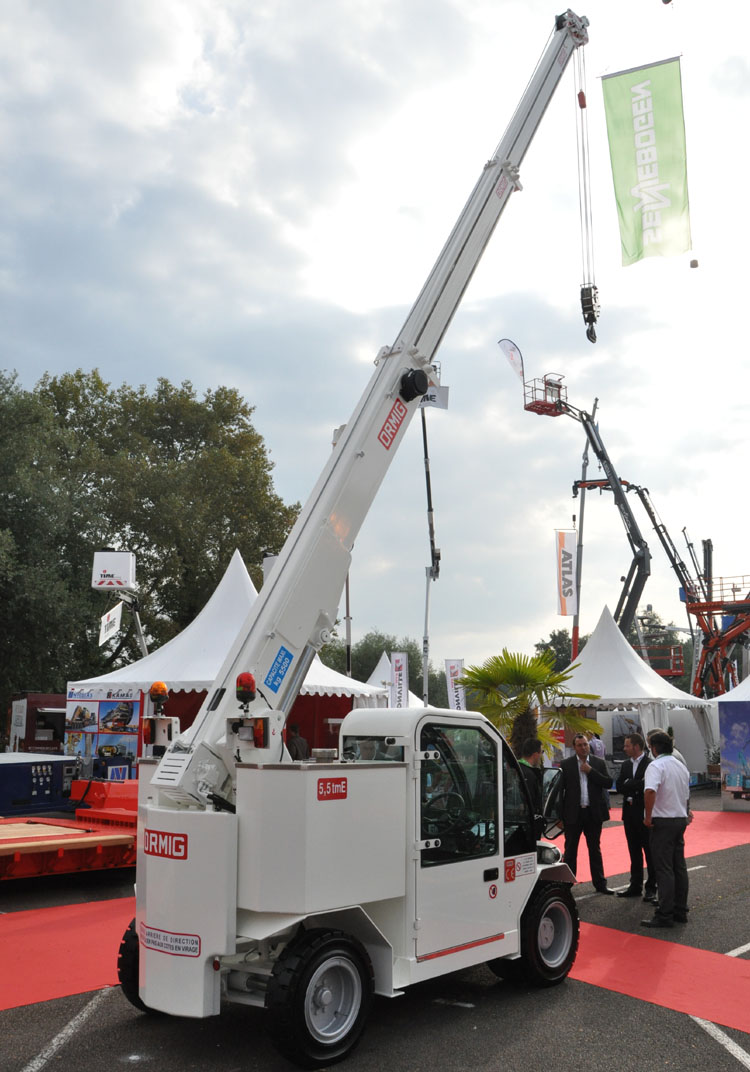

An Ormig Pick & Carry crane in the 5,5 ton class. It is the 5,5 tmE, where the E indicates that it is fully electric driven by a large battery pack. These cranes don't need outriggers as they can still drive with their load on the hook. This make them very suitable for industrial installations. This model only weighs 6,7 tonnes and can be operated about 8 hours on a full battery. The double extending outrigger reaches up to 9 meters of height where it can lift 1,6 tonnes. With it's very compact dimensions of 3,22 meters of length and 1,6 meters width it will fit to most doorways.
|
 |
 |

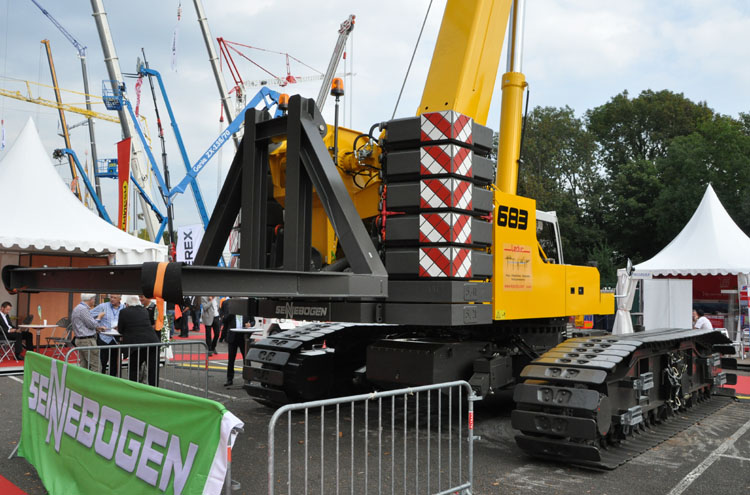

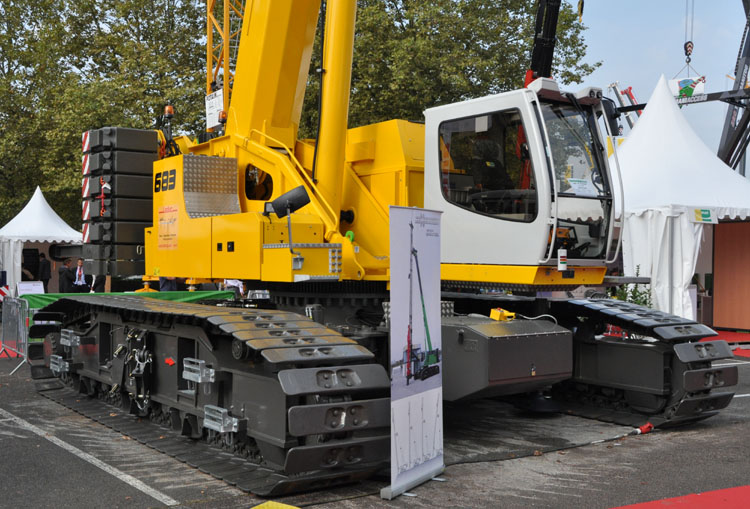

Sennebogen displayed this tracked telescopic crane, the 683. The shown version is equiped with a large rack behind the ballast, this will be used by the customer (Leduc) to mount al large powerpack. That will drive a large piling block that is lifting by the crane. The 683 HD is a telescopic crane that can be installed on tracks aswell as tyres, it's a 80 tonnes capacity unit. The boom has a length of 42 meters (58 with a jib). The crane can also be equiped with a seperate pile driver boom. It carries 25,9 tonnes of ballast at the back and 6 tonnes at the undercarriage.
|
| |
|
