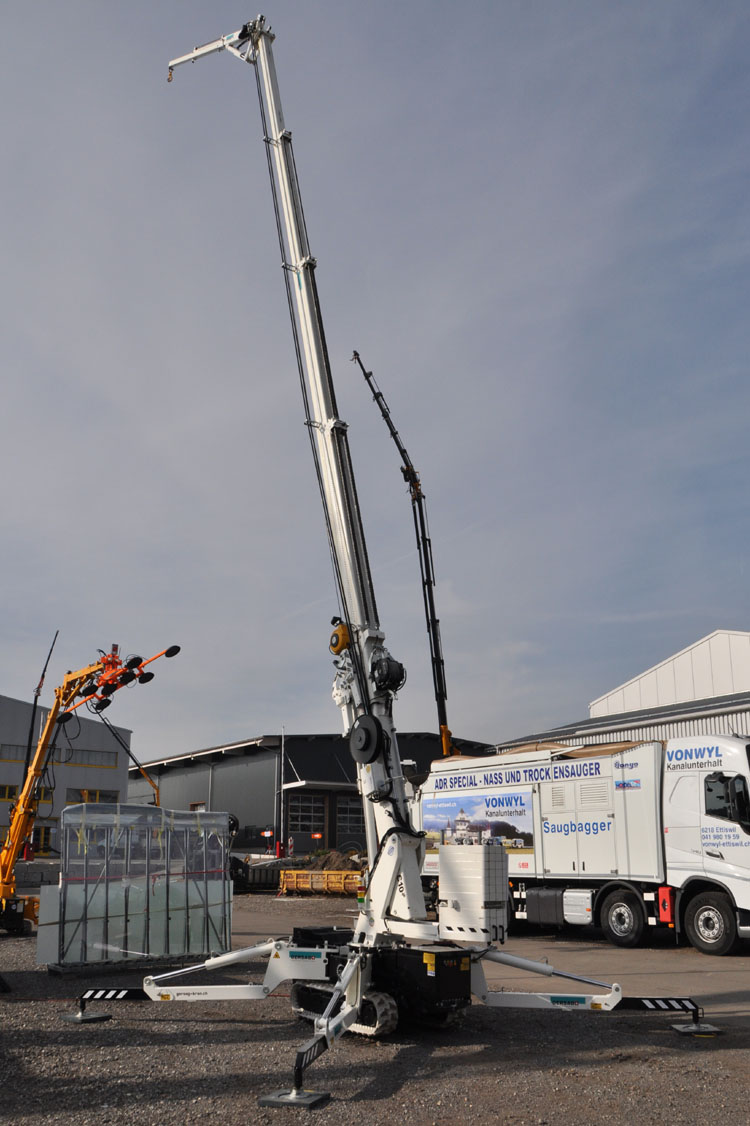

Hoeflon tracked cranes are also part of the Hodel programm. This is the C10, a crane that lifts up to 4 tons and can reach up to 21 meters with the jib. At this height it can still lift 750 kg. Folded down it is very compact and less then 1 meter wide. This one is for Gersag Kran.
|
|

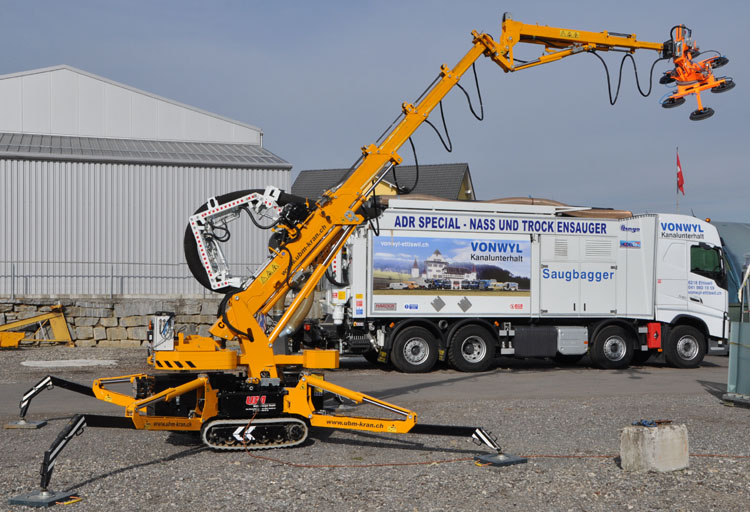

This is the slighty lighter C6 of the company UBM Kran. This one can lift up to 3 tons, or 600 kg at a height of 15,8 meters. These machines are ideal for the placement of windows. Therefore this one is equiped with a suction device to install windows.
|
|

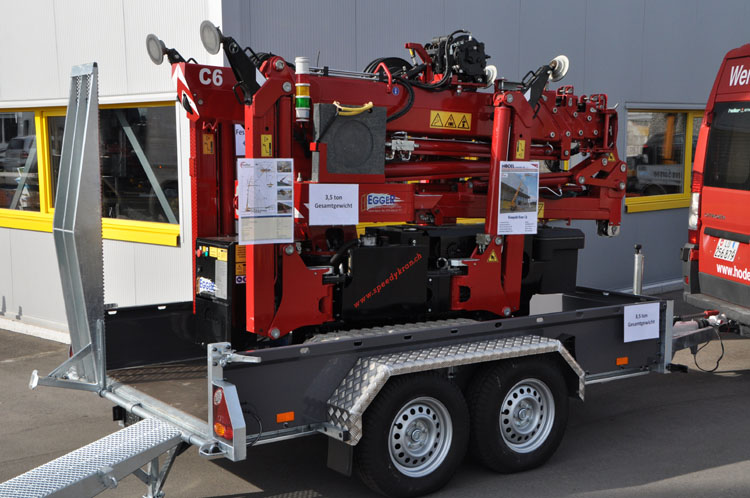

The C6 is also very compact and including it's ballast weighs only 2,6 tons. That is why it can be transported on a standard 3,5 tons drawbar trailer. This one belongs to Egger Kran.
|
|
|

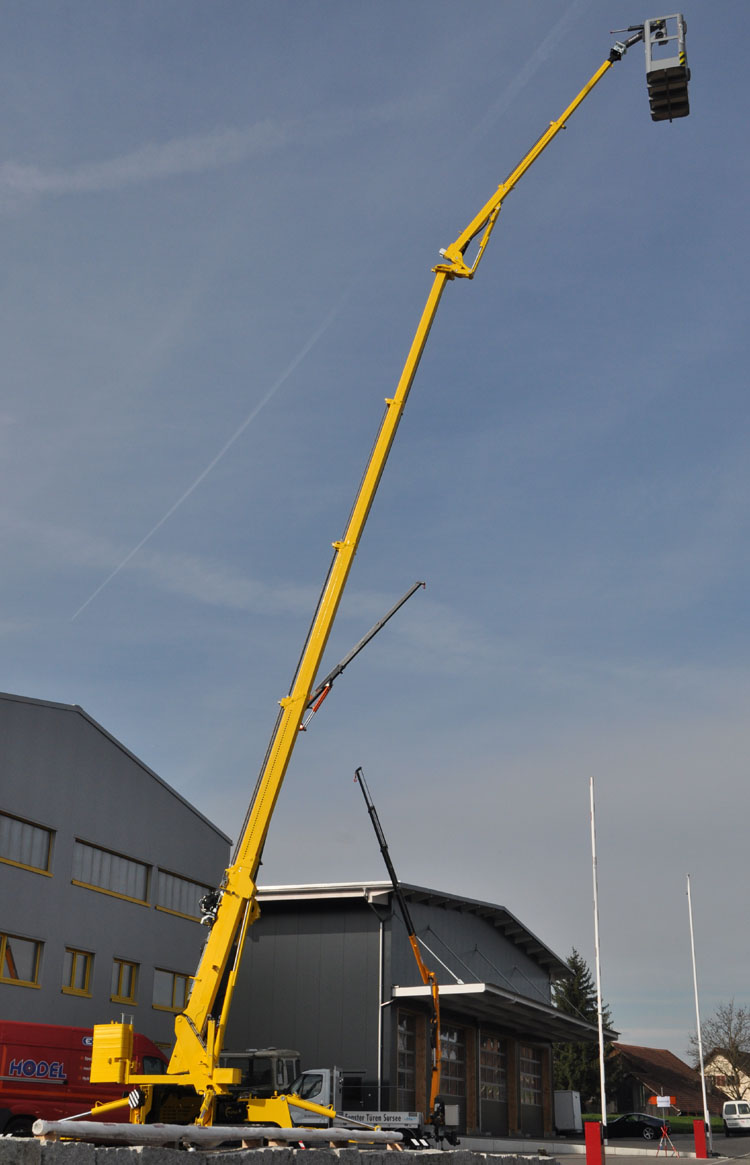

Another C10. This one is equiped with a worksman basket called "Sky 2", it can lift up to 200 kg. |
|
|
|

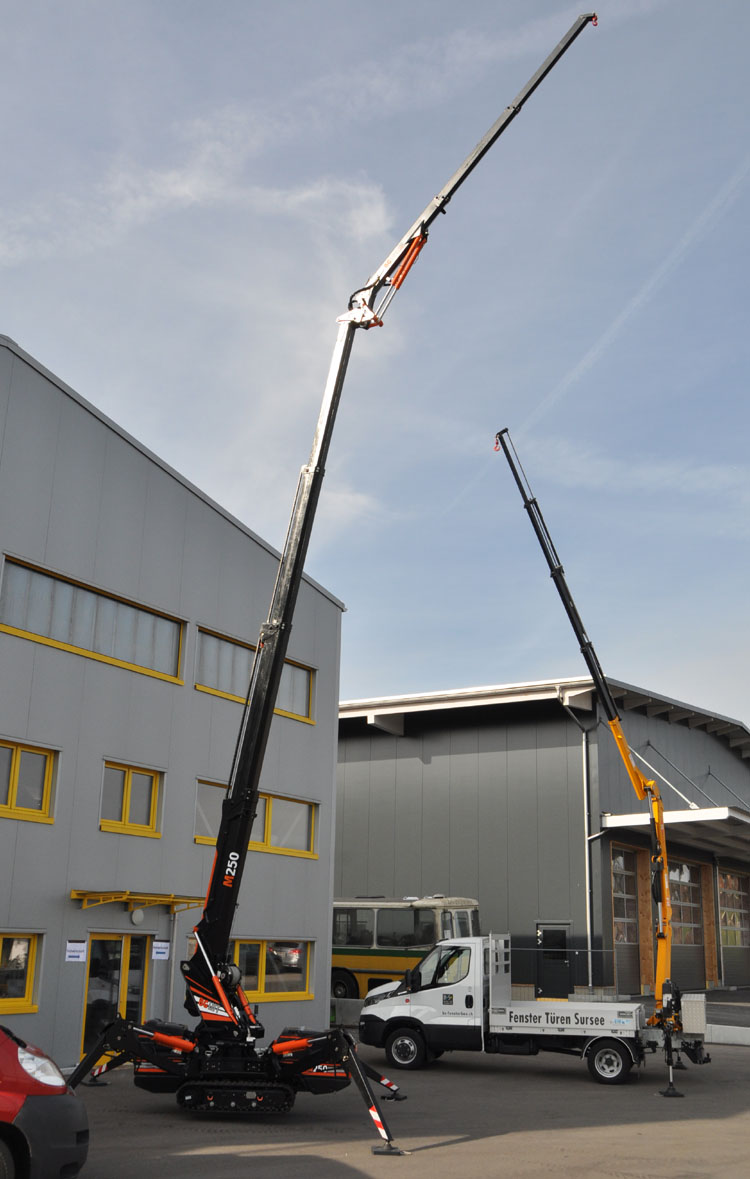

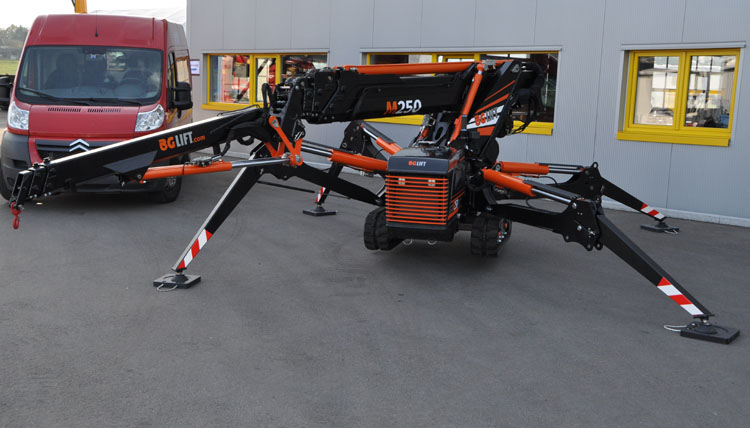

BGLift (Brennero Gru) is an italian manufacturer of tracked cranes. This is the M250, it can lift 2,5 tons at 1,5 meters. The maximum height is 10,4 meters, or 15,65 meters with the jib. It can lift 400 kg at that height.
|
|
|
|
|
|

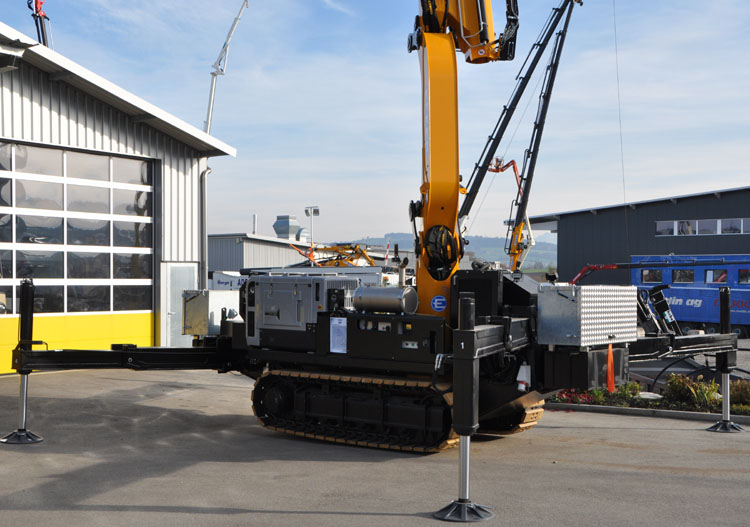

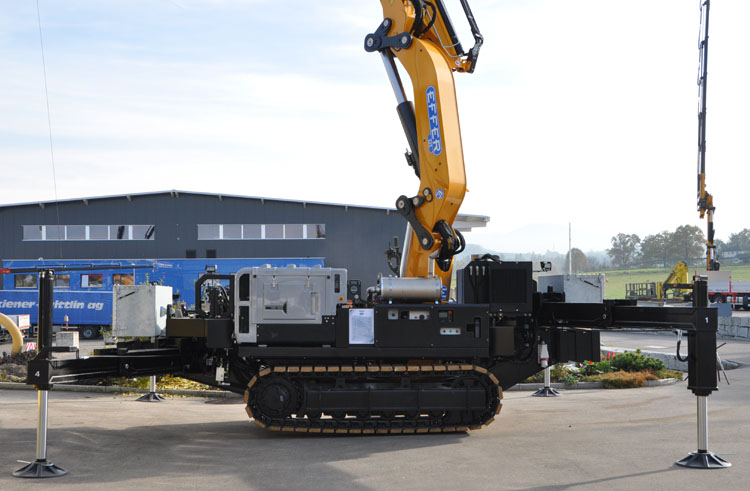

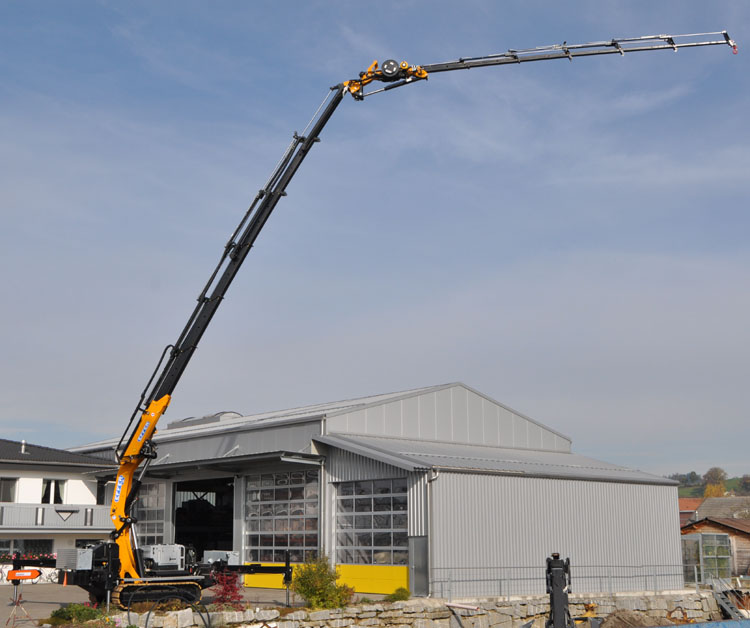

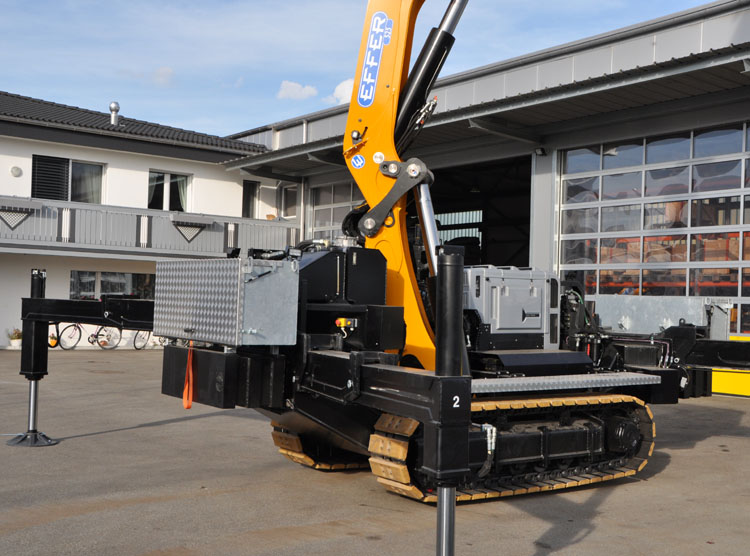

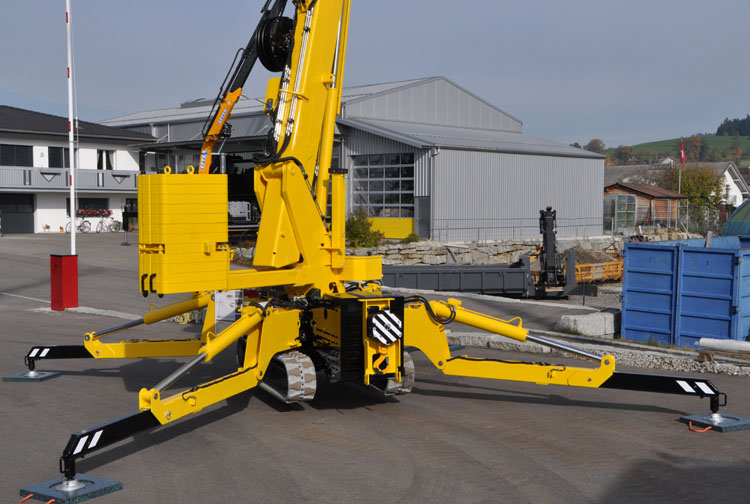

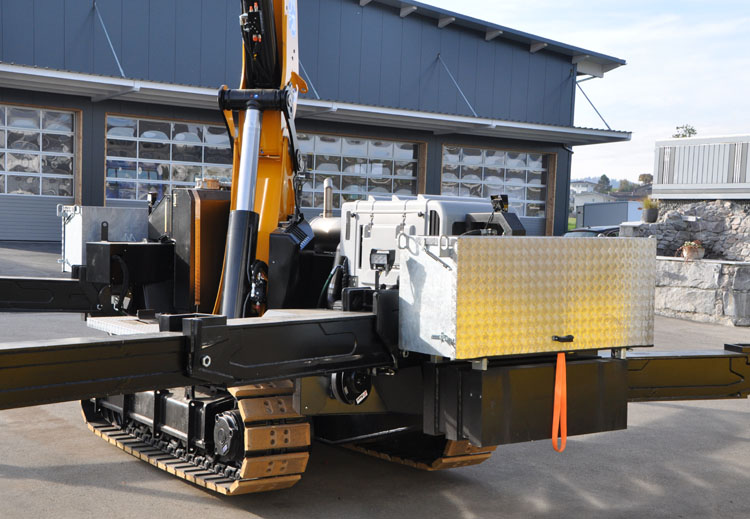

This tracked crane also originates from a BGLift product. But it was modified by Hodel for the Swiss market and the tougher requirements of the customers. It has gotten adittional ballast weights at the carrier. Also heavier tracks where used to support the higher own weight. This carrier also has gotten a stronger engine for use in heavy terrain. The tracks can now also be filled with rubber pads, so that it can be used inside hallways. The crane is an Effer 525 6S with a 6S heavy duty jib, good for 580 kg at 29,37 meters.
|
|
|
