Iveco Sivi Trakker 540 8x6 with WSK |
|
Definitely the most interesting Sivi on the yard was this one. |
|

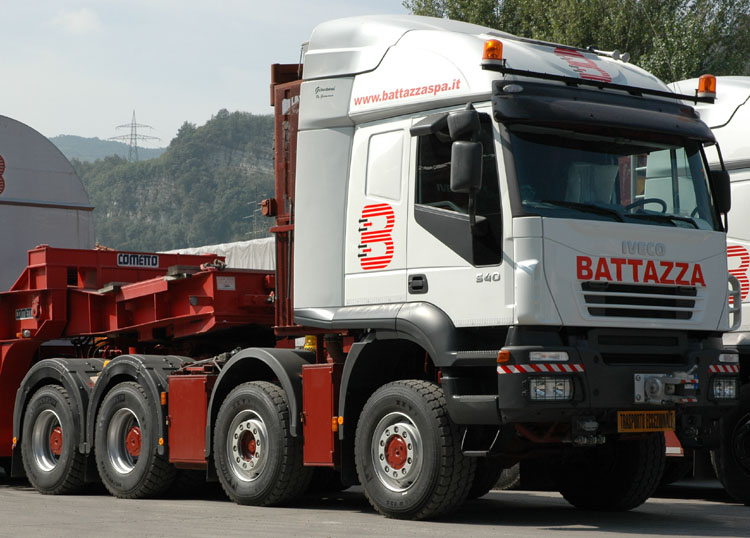

It’s a version with 540 hp, a WSK440 torque converter and 8x6 driveline! The engine is a Cursor 13, a 12,9 liter 6-cylinder which delivers 2350 Nm torque. |
|

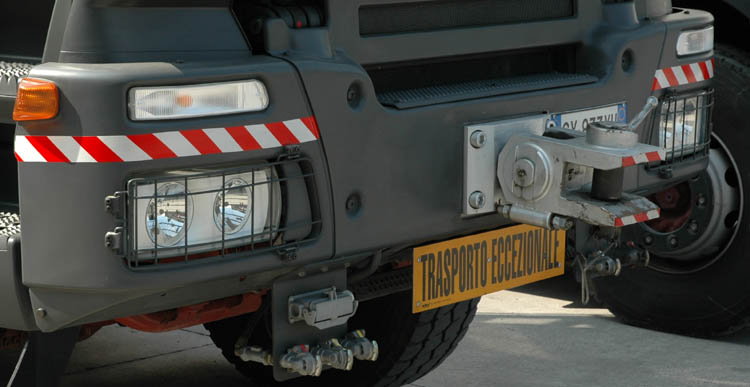

A better view at the bumper to which a heavy coupling is mounted. The air connections for the trailer are mounted below. The truck can be used as a pusher when it is equiped with a ballast box. |
|

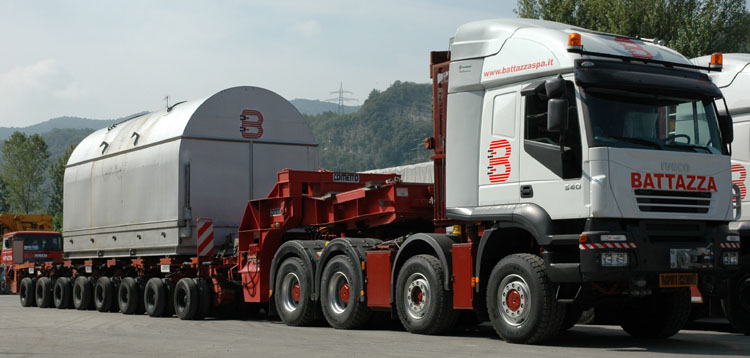

The side view shows the longer wheelbase, caused by the 8x6 driveline. A Steyr dropbox is mounted between the front axle and the tandem. Base vehicle is a 6x6 with leaf springs which becomes an additional air suspended front axle. |
|

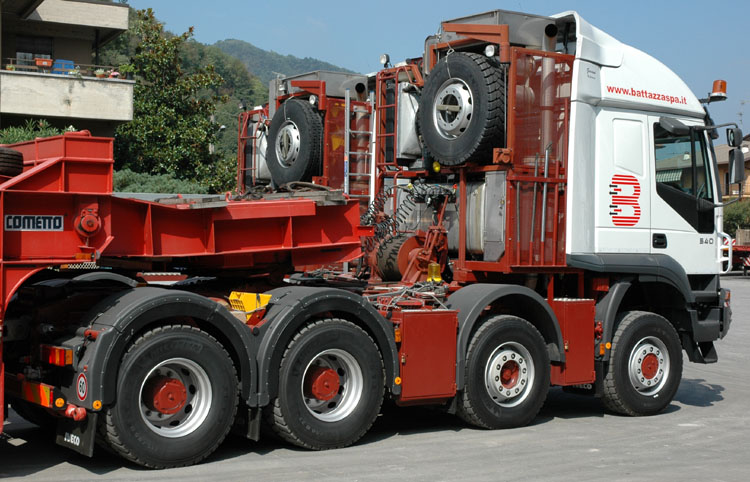

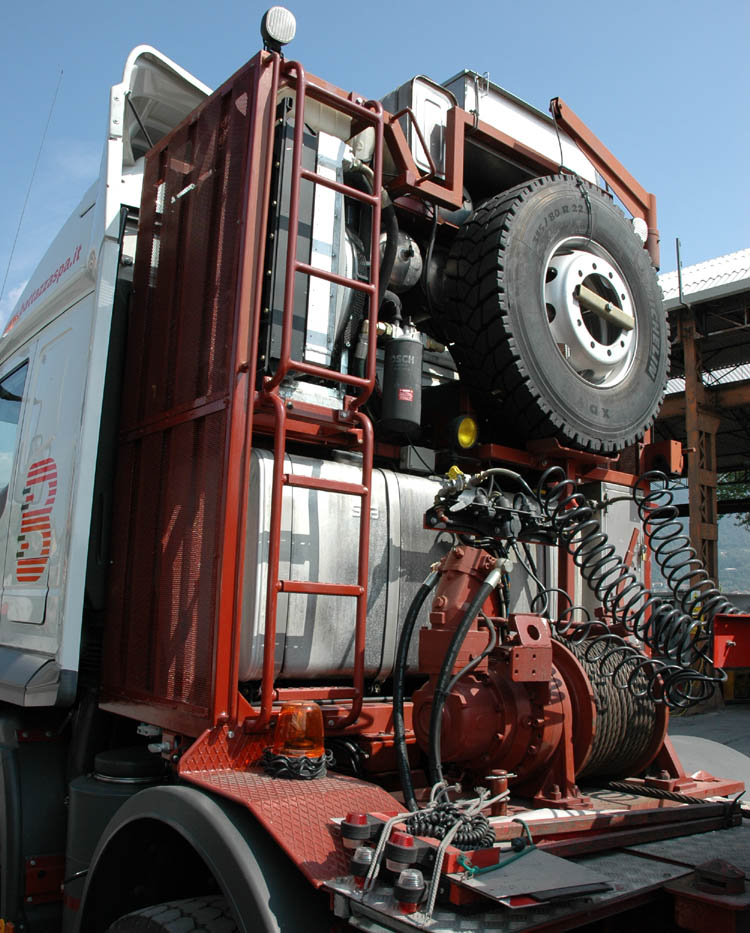

Detailed view of the tower. This side has the muffler and the spare tyre. On the chassis, directly behind the tower, they mounted a heavy winch. It is mounted to the chassis with 4 twistlocks and is demountable. |
|

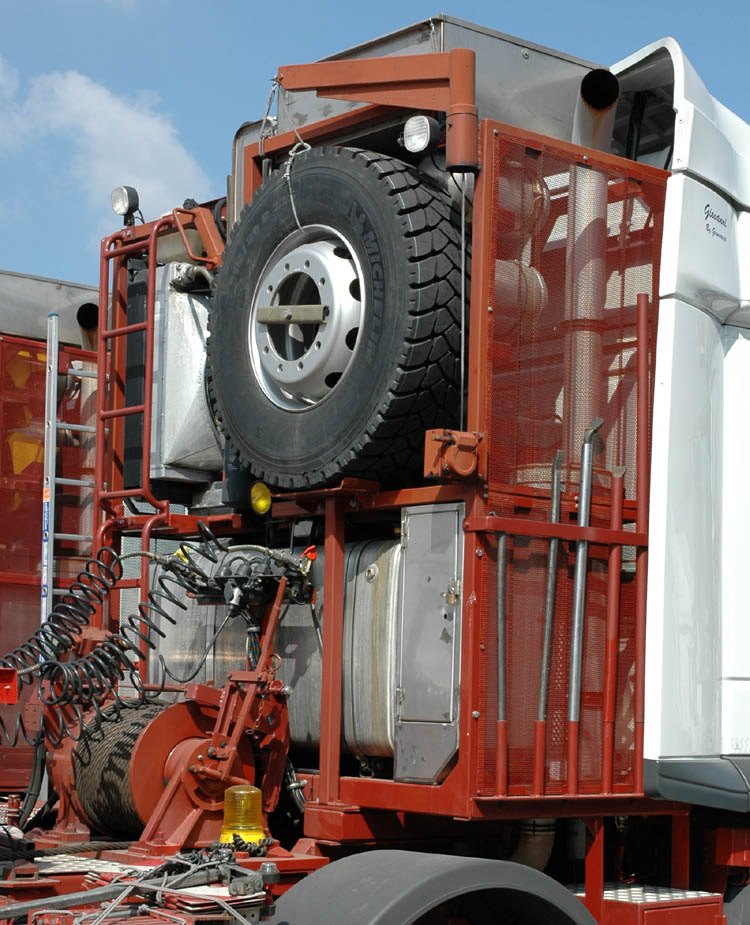

This side of the tower has the dieseltank. On top of that are the extra coolers. The front coolers is a 2nd radiator for the engine, behind that stands oil-air cooler for the WSK. The hydraulic cooling fan provides enough cool air. |
|
The space between the axles is filled with toolboxes. |
|

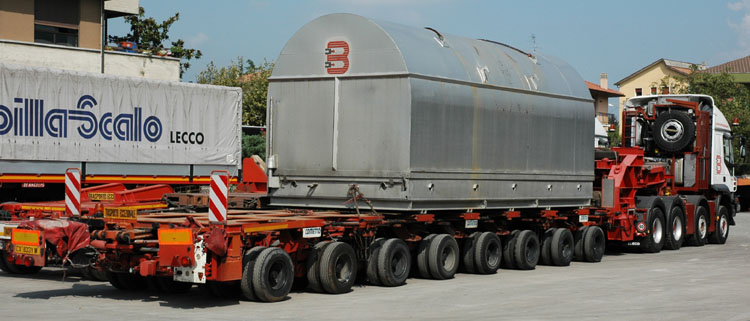

The Sivi was connected to a 8-axled Cometto moduletrailer with a isolated steel box that can carry steel at high temperatures. By the way, Battaza owns 2 of these 8x6 tractors. |
|
MAN FE 460 A 8x2 - Effer 1150 - 6S |
|

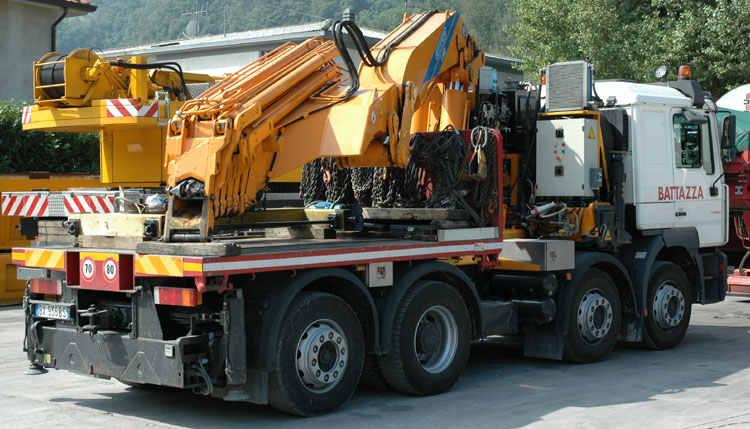

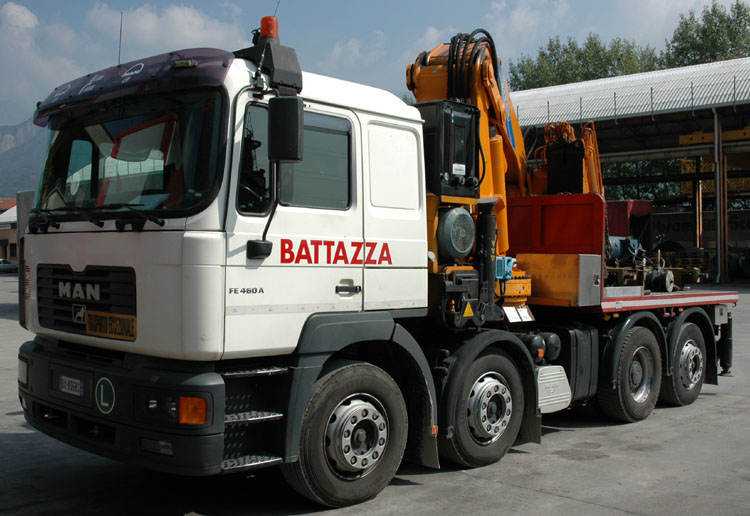

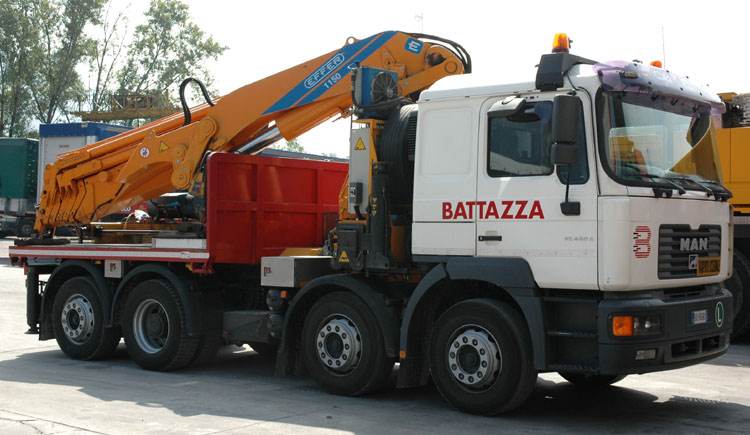

Besides heavy transport Battazza also operates a few cranes. Among them is this MAN FE 460 A 8x2. |
|

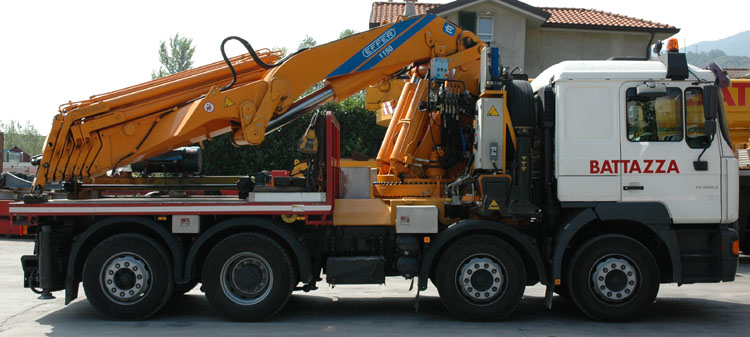

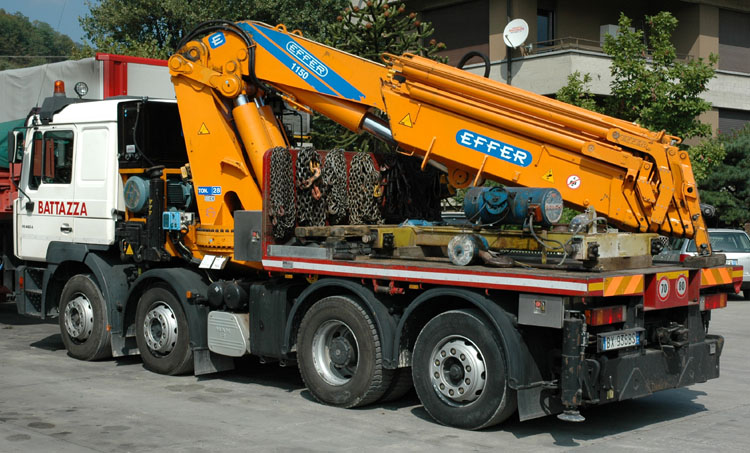

It is equiped with an Effer 1150 in the 6S version. |
|
It is probably used mainly for machinery movements, as it doesn’t has a jib. |
|
|
|
